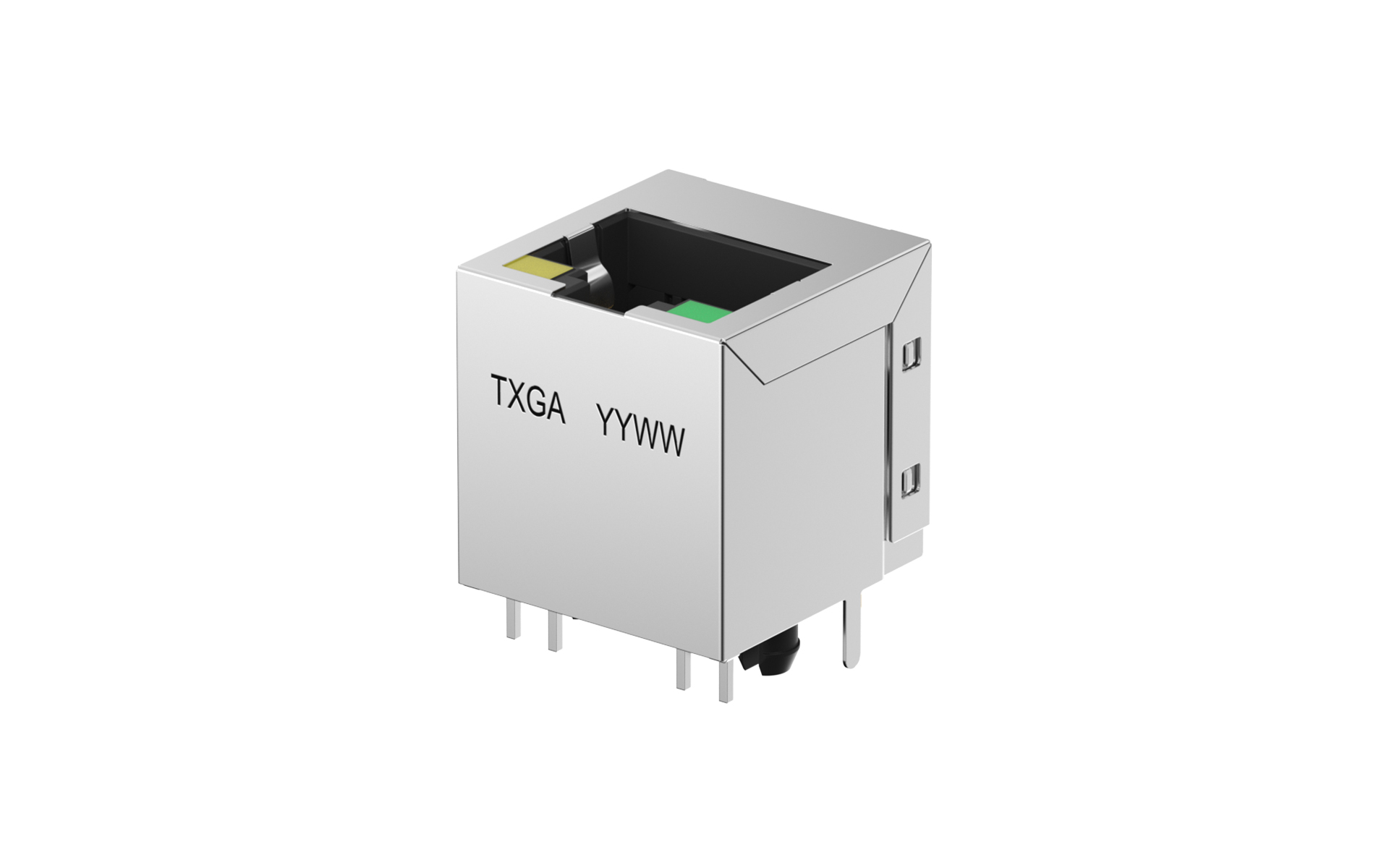

FRJ45049-1103K6K1200 RJ45 Connector 180°Vertical, 1Port, 3μ", Black, L:yellow, R:green,

FRJ45049-1103K6K1200

RJ45 Connector 180°Vertical, 1Port, 3μ", Black, L:yellow, R:green,

Product Number：FRJ45049-1103K6K1200

Production Status： Active

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{5.613019\|tradeCurrencySymbol({digits:6})}}
10+	{{5.371834\|tradeCurrencySymbol({digits:6})}}
50+	{{4.538652\|tradeCurrencySymbol({digits:6})}}
100+	{{4.275542\|tradeCurrencySymbol({digits:6})}}
500+	{{3.705469\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 1000

MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Network Connector (RJ45/RJ11)

Product Category

RJ45 Connector

Style

Socket

Port Configuration

1Port

Number of Positions

8Circuits

Positions/Contacts

8P8C

LED Status Indicator

L:yellow,R:green

Orientation

Vertical(180°)

Colour

Black

Contact Type

Round pin

Current(Max)

1.5A

Voltage(Max)

125V

Contact Resistance

30 mΩ Max

Insulation Resistance

500 MΩ Min

Withstanding Voltage

1000V AC r.m.s

Operating Temperature Range

-40ºC~+85ºC

Mounting Style

Through hole

Material-Contact

Phosphor bronze

Plating

Gold plated

Plating Thickness

0.075μm

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Tray

Product Drawings

FRJ45049.pdf

3D Drawings

frj45049_ref.rar

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
