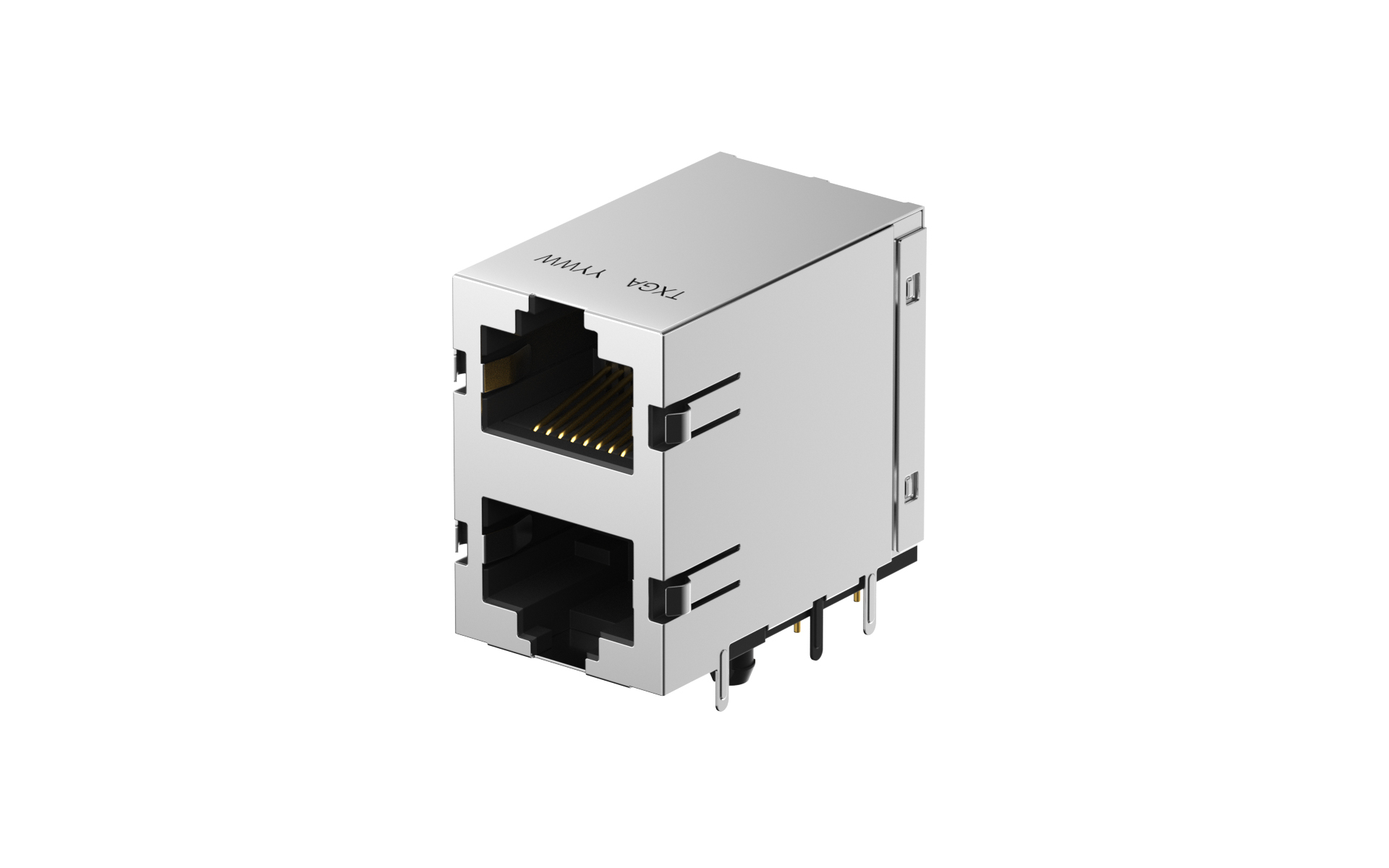

FRJ45051-2100K6K0200 RJ45 Connector 90°Angle, 2Ports, Gold flash, Black, Non-LED,

FRJ45051-2100K6K0200

RJ45连接器 90°插件 ,双口 ,Gold flash ,黑色 ,无LED灯 ,

RJ45 Connector 90°Angle, 2Ports, Gold flash, Black, Non-LED,

Product Number：FRJ45051-2100K6K0200

Production Status： Active

RJ45 Connector 90°Angle, 2Ports, Gold flash, Black, Non-LED,

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{7.457493\|tradeCurrencySymbol({digits:6})}}
10+	{{7.137053\|tradeCurrencySymbol({digits:6})}}
50+	{{6.030082\|tradeCurrencySymbol({digits:6})}}
100+	{{5.680512\|tradeCurrencySymbol({digits:6})}}
500+	{{4.92311\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 1000

MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Network Connector (RJ45/RJ11)

Product Category

RJ45 Connector

Style

Socket

Port Configuration

2Ports

Number of Positions

16Circuits

Positions/Contacts

8P8C

LED Status Indicator

Orientation

Right angle(90°)

Colour

Black

Contact Type

Round pin

Current(Max)

1.5A

Voltage(Max)

150V

Contact Resistance

40 mΩ Max

Insulation Resistance

500 MΩ Min

Withstanding Voltage

1000V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

Mounting Style

Through hole

Material-Contact

Phosphor bronze

Plating

Gold plated

Plating Thickness

Gold flash

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Tray

Product Drawings

FRJ45051.pdf

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
