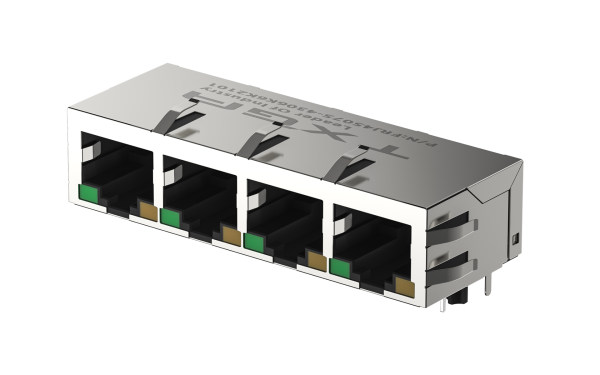

FRJ45075-4306K6K2101 RJ45 Connector 90°Angle, 4Ports, 6μ", Black, L:green, R:yellow, 100Base-T

FRJ45075-4306K6K2101

RJ45连接器 90°插件 ,四口 ,6μ" ,黑色 ,左绿右黄 ,100Base-T

RJ45 Connector 90°Angle, 4Ports, 6μ", Black, L:green, R:yellow, 100Base-T

Product Number：FRJ45075-4306K6K2101

Production Status： Active

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{48.943995\|tradeCurrencySymbol({digits:6})}}
10+	{{46.32403\|tradeCurrencySymbol({digits:6})}}
50+	{{41.084098\|tradeCurrencySymbol({digits:6})}}
100+	{{38.464133\|tradeCurrencySymbol({digits:6})}}
500+	{{33.224201\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 2

Lead time Ship Immediately

MOQ 1000

MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Network Connector (RJ45/RJ11)

Product Category

RJ45 Connector

Style

Socket

Port Configuration

4Ports

Number of Positions

32Circuits

Positions/Contacts

8P8C

LED Status Indicator

L:green,R:yellow

Orientation

Right angle(90°)

Colour

Black

Contact Type

Square pin

Current(Max)

1.5A

Voltage(Max)

125V

Contact Resistance

50 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+85ºC

Data Rate

10/100Base-T

Mounting Style

Through hole

Material-Contact

Phosphor bronze

Plating

Gold on contact, bright tin on tail

Plating Thickness

0.15μm

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Tray

Product Drawings

FRJ45075.pdf

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
