FRJ45097-1306K6K2102

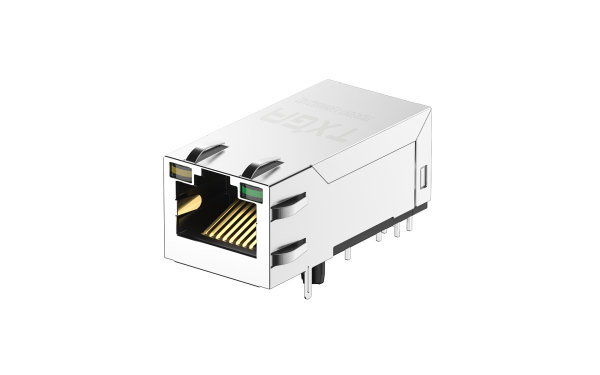

RJ45连接器 90°插件 ,单口 ,6μ" ,黑色 ,左绿右黄 ,1000Base-T(POE 30W)
RJ45 Connector 90°Angle, 1Port, 6μ", Black, L:green, R:yellow, 1000Base-T(POE 30W)
Product Number：FRJ45097-1306K6K2102
Production Status： Active
RJ45 Connector 90°Angle, 1Port, 6μ
RJ45 Connector 90°Angle, 1Port, 6μ
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

视频加载失败，请稍后重试。

{{ videoIndex + 1 }} / {{ videos.length }}
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{28.255225|tradeCurrencySymbol({digits:6})}}
10+ {{26.725004|tradeCurrencySymbol({digits:6})}}
50+ {{23.664559|tradeCurrencySymbol({digits:6})}}
100+ {{22.134337|tradeCurrencySymbol({digits:6})}}
500+ {{19.073894|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 94
Lead time Ship Immediately
MOQ 5000
MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Network Connector (RJ45/RJ11)
Product Category
RJ45 Connector
Style
Socket
Port Configuration 
1Port
Number of Positions
14Circuits
Positions/Contacts
14P8C
LED Status Indicator
L:green,R:yellow
Orientation
Right angle(90°)
Colour
Black
Contact Type
Square pin
Current(Max)
1.5A
Voltage(Max)
125V
Contact Resistance
30 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Data Rate
10/100/1000Base-T
Mounting Style
Through hole
Material-Contact
Phosphor bronze
Plating
Gold on contact, bright tin on tail
Plating Thickness
0.15μm
Material-Resin
PA46
Flammability Rating
UL94 V-0
Packaging
Tray

Product Drawings

Drawing-FRJ45097.pdf
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
