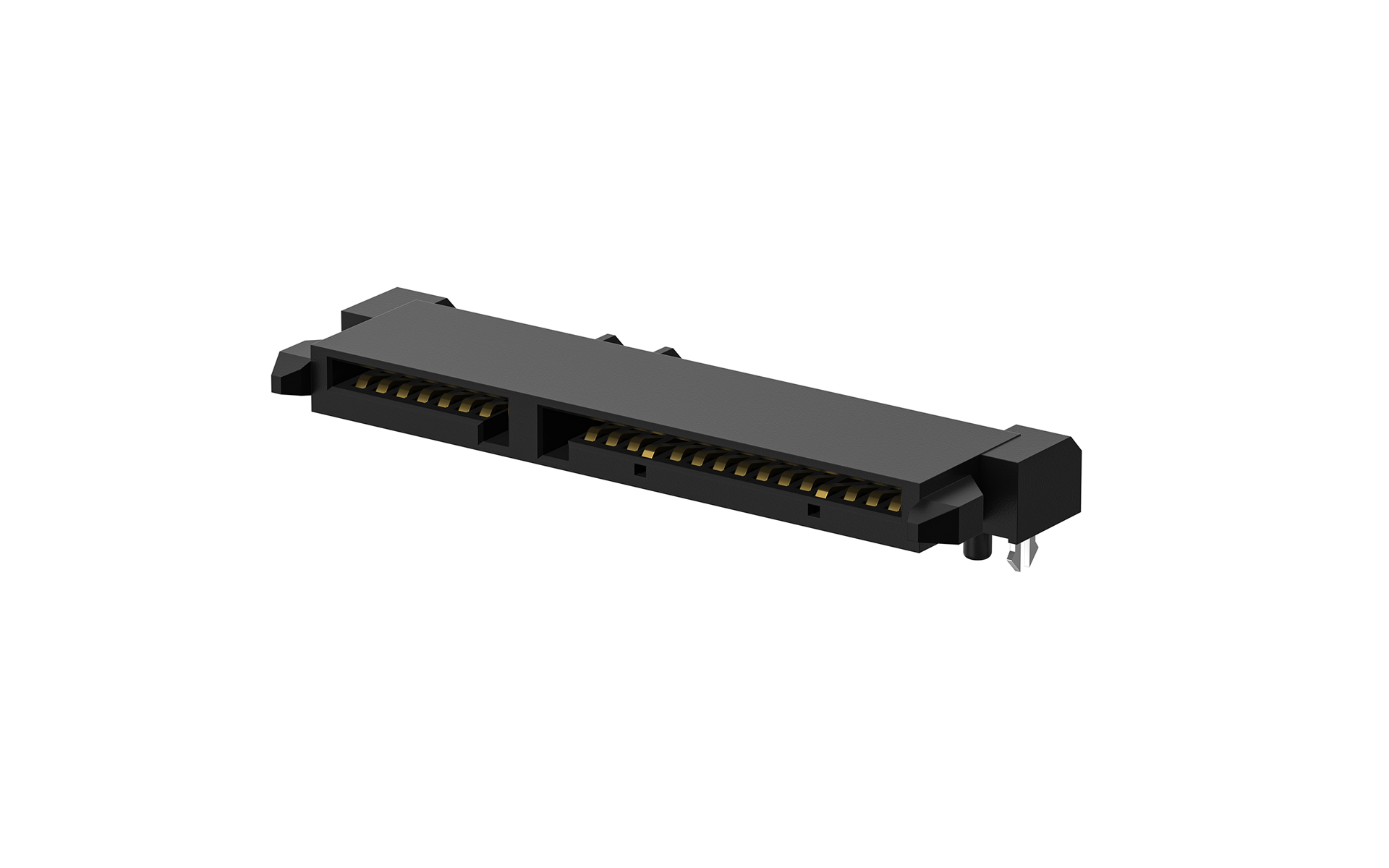

FST2204-FSB3003K6K SATA 90° Angle Female 7+15Circuits(SMT)

FST2204-FSB3003K6K

SATA 90° Angle Female 7+15Circuits(SMT)

Product Number：FST2204-FSB3003K6K

Production Status： Active

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

视频加载失败，请稍后重试。

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{2.642453\|tradeCurrencySymbol({digits:6})}}
10+	{{2.492175\|tradeCurrencySymbol({digits:6})}}
50+	{{2.191621\|tradeCurrencySymbol({digits:6})}}
100+	{{2.041344\|tradeCurrencySymbol({digits:6})}}
500+	{{1.74079\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 910

Lead time Ship Immediately

MOQ 1000

MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Memory Module Socket

Product Category

SATA

Style

Socket

Gender

Female

Number of Positions

22Circuits

Orientation

Right angle(90°)

Colour

Black

Current(Max)

Voltage(Max)

30V

Contact Resistance

20 mΩ Max

Insulation Resistance

800 MΩ Min

Withstanding Voltage

600V AC r.m.s

Operating Temperature Range

-40ºC~+85ºC

Mounting Style

SMT

Material-Contact

Phosphor bronze

Plating

Gold on contact, bright tin on tail

Plating Thickness

Gold flash

Material-Resin

LCP

Flammability Rating

UL94 V-0

Packaging

Tray

Product Drawings

FST2204.pdf

3D Drawings

FST2204-FSB3XX3K6X_REF.stp

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
