FT12001-F1H Wire to board terminal 1.2mm Female (Gold-Plated)

FT12001-F1H

Wire to board terminal 1.2mm Female (Gold-Plated)

Product Number：FT12001-F1H

Production Status： Active

Wire to board terminal 1.2mm Female (Gold-Plated)

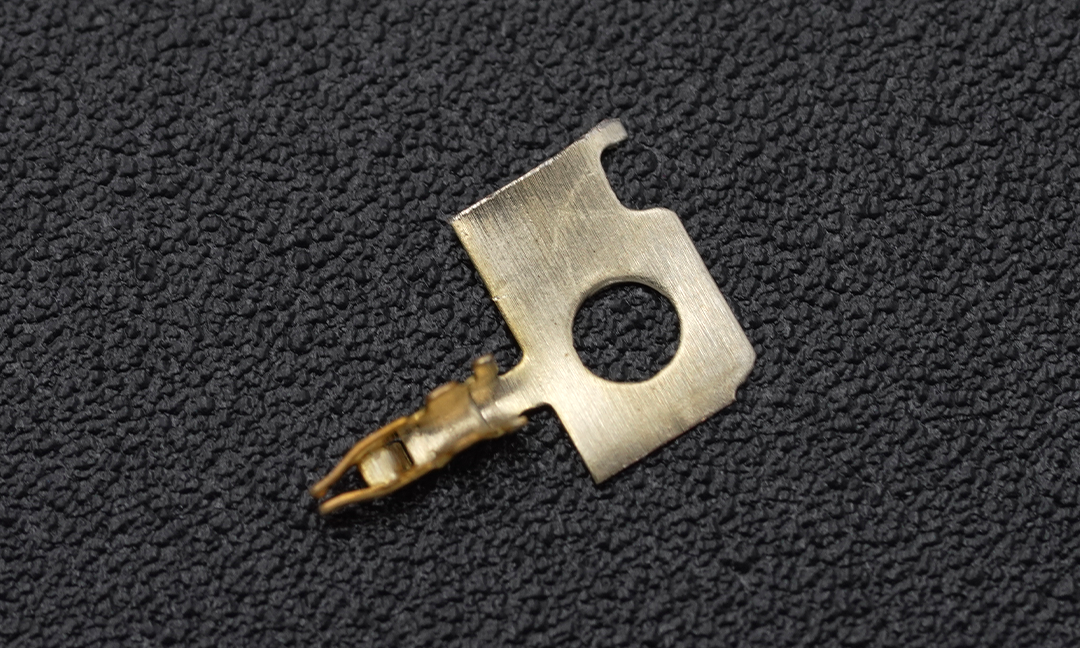

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
100+	{{0.461391\|tradeCurrencySymbol({digits:6})}}
500+	{{0.163409\|tradeCurrencySymbol({digits:6})}}
1000+	{{0.113105\|tradeCurrencySymbol({digits:6})}}
20000+	{{0.065043\|tradeCurrencySymbol({digits:6})}}
160000+	{{0.063762\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 100

MPQ 200000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Wire to Board/Wire Connector

Style

Terminal

Gender

Female

Pitch

1.2mm

Number of Positions

1Circuit

Orientation

Vertical(180°)

Applicable wires (AWG Max.)

28AWG

Current(Max)

1.5A

Voltage(Max)

50V

Operating Temperature Range

-25ºC~+85ºC

Mounting Style

Riveting

Material-Contact

Phosphor bronze

Plating

Gold plated

Packaging

Reel

Product Drawings

FT12001-F1H.pdf

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
