FTB35009-F24S2GNB Terminal block, 3.5mm, Plug, 24Circuits, Vertical(180°), Green

FTB35009-F24S2GNB

Terminal block, 3.5mm, Plug, 24Circuits, Vertical(180°), Green

Product Number：FTB35009-F24S2GNB

Production Status： Active

Terminal block, 3.5mm, Plug, 24Circuits, Vertical(180°), Green

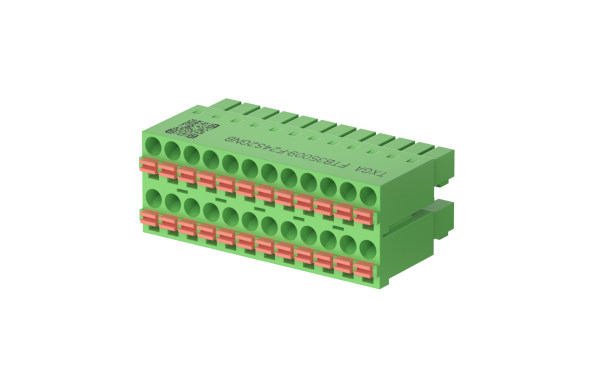

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{36.320337\|tradeCurrencySymbol({digits:6})}}
20+	{{34.18412\|tradeCurrencySymbol({digits:6})}}
100+	{{32.285002\|tradeCurrencySymbol({digits:6})}}
500+	{{30.585792\|tradeCurrencySymbol({digits:6})}}
1000+	{{29.802435\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 10

Lead time Ship Immediately

MOQ 600

MPQ 600

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Terminal Block

Style

Plug

Gender

Female

Pitch

3.5mm

Number of Positions

24Circuits

Orientation

Vertical(180°)

Colour

Green

Current(Max)

12A

Voltage(Max)

300V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

2500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mounting Style

Spring clamp

Material-Contact

Copper alloy

Plating

Bright tin plated

Material-Resin

PA66

Flammability Rating

UL94 V-0

Packaging

PE Bag

Product Drawings

FTB35009.pdf

3D Drawings

FTB35009-F24S2GNB.stp

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
