FUS101-FSBK6M
Mini USB 卧贴 5触点 母座

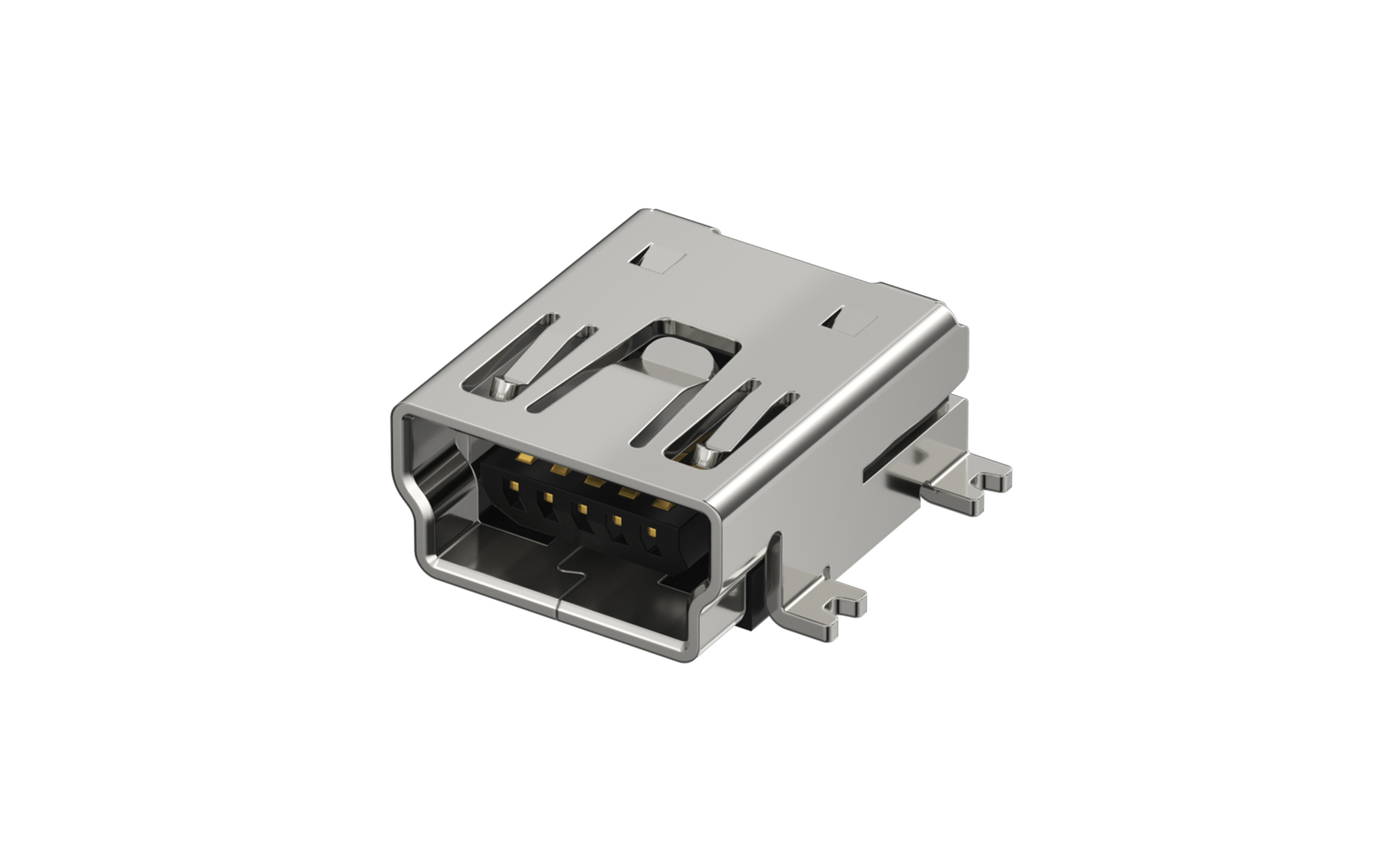

Mini USB 5Circuits 90°Angle Female(SMT)
Product Number：FUS101-FSBK6M
Production Status： Active
Mini USB 5Circuits 90°Angle Female(SMT)
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{1.373707|tradeCurrencySymbol({digits:6})}}
10+ {{1.292213|tradeCurrencySymbol({digits:6})}}
50+ {{1.129223|tradeCurrencySymbol({digits:6})}}
100+ {{1.047728|tradeCurrencySymbol({digits:6})}}
500+ {{0.884738|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 107
Lead time Ship Immediately
MOQ 700
MPQ 7000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
USB Connector
Product Category
USB2.0
Style
Socket
Gender
Female
Type
Mini-B type
Number of Positions
5Circuits
Peg
With peg
Orientation
Right angle(90°)
Colour
Black
Current(Max)
1A
Voltage(Max)
30V
Contact Resistance
50 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
100V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Waterproof / Dustproof
No
Mounting Style
SMT
Material-Contact
Phosphor bronze
Plating
Gold on contact, matte tin on tail
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Reel

Product Drawings

Drawing-FUS101.pdf

3D Drawings

FUS101_ref.stp
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
