FUS110-FDSK6K
Mini USB 180°插件 5触点 母座
Mini USB 5Circuits 180°Vertical Female(DIP)
Product Number：FUS110-FDSK6K
Production Status： Active

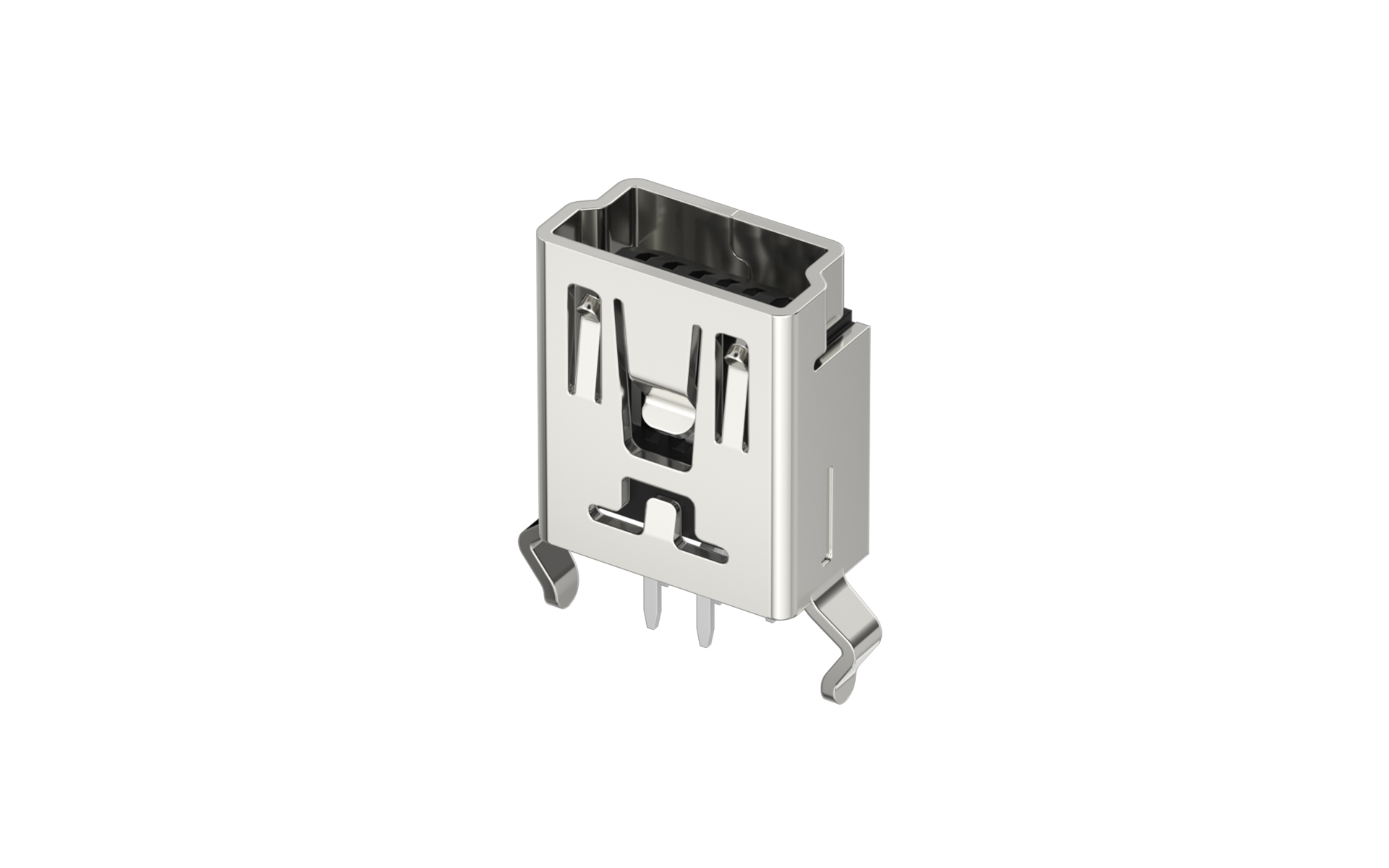

Mini USB 5Circuits 180°Vertical Female(DIP)
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{1.26141|tradeCurrencySymbol({digits:6})}}
10+ {{1.186578|tradeCurrencySymbol({digits:6})}}
50+ {{1.036912|tradeCurrencySymbol({digits:6})}}
100+ {{0.962079|tradeCurrencySymbol({digits:6})}}
500+ {{0.812412|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 1000
MPQ 13000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
USB Connector
Product Category
USB2.0
Style
Socket
Gender
Female
Type
Mini-B type
Number of Positions
5Circuits
Orientation
Vertical(180°)
Colour
Black
Current(Max)
1A
Voltage(Max)
30V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
600V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Waterproof / Dustproof
No
Mounting Style
Through hole
Material-Contact
Phosphor bronze
Plating
Gold on contact, bright tin on tail
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Tray

Product Drawings

FUS110.pdf

3D Drawings

FUS110.rar
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
