FUS267-FDSW1K
USB A型 4触点 180°插件 母座 白色
USB A-type 4Circuits 180°Vertical Female(DIP)
Product Number：FUS267-FDSW1K
Production Status： Active
USB A-type 4Circuits 180°Vertical Female(DIP)

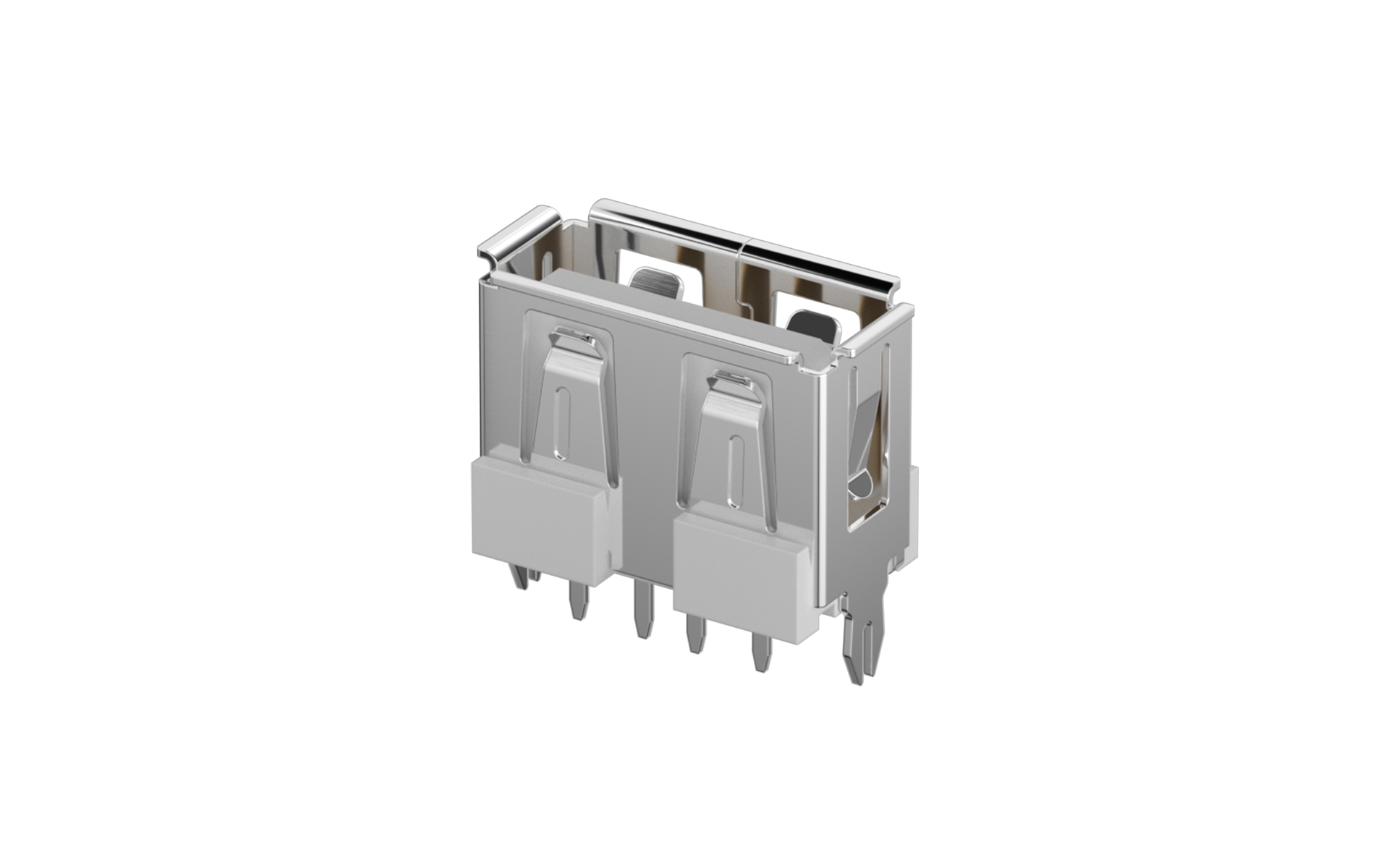

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{2.825479|tradeCurrencySymbol({digits:6})}}
50+ {{1.425467|tradeCurrencySymbol({digits:6})}}
100+ {{1.323648|tradeCurrencySymbol({digits:6})}}
500+ {{1.0691|tradeCurrencySymbol({digits:6})}}
1000+ {{0.707642|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 1000
MPQ 9000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
USB Connector
Product Category
USB2.0
Style
Socket
Gender
Female
Type
Type A
Number of Positions
4Circuits
Orientation
Vertical(180°)
Colour
White
Current(Max)
1.5A
Voltage(Max)
30V
Contact Resistance
30 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Waterproof / Dustproof
No
Mounting Style
Through hole
Material-Contact
Copper alloy
Plating
Gold on contact, bright tin on tail
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Tray

Product Drawings

FUS267.pdf

3D Drawings

fus267_ref.stp
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
