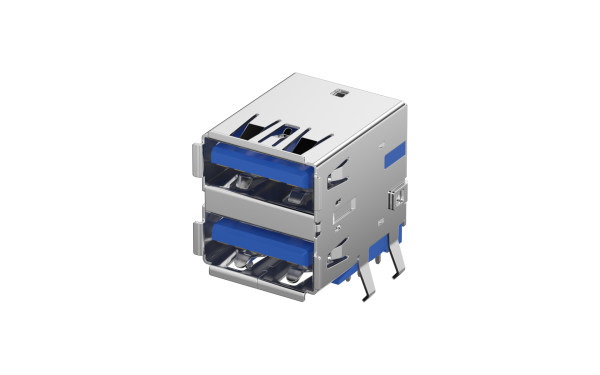

FUS327-FDBU1K USB(3.0) A-type 9+9Circuits, Female, 90° Angle(DIP)(15μ'')

FUS327-FDBU1K

USB(3.0) A型双层 9+9触点 ,母座 ,90°插件(端子镀金15μ'')

USB(3.0) A-type 9+9Circuits, Female, 90° Angle(DIP)(15μ'')

Product Number：FUS327-FDBU1K

Production Status： Active

USB(3.0) A-type 9+9Circuits, Female, 90° Angle(DIP)(15μ'')

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{6.687197\|tradeCurrencySymbol({digits:6})}}
50+	{{5.8938\|tradeCurrencySymbol({digits:6})}}
100+	{{5.440431\|tradeCurrencySymbol({digits:6})}}
500+	{{4.307008\|tradeCurrencySymbol({digits:6})}}
1000+	{{3.105579\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 1000

MPQ 2000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

USB Connector

Product Category

USB3.0

Style

Socket

Gender

Female

Type

Type A

Number of Positions

18Circuits

Orientation

Right angle(90°)

Colour

Blue

Current(Max)

1.8A

Voltage(Max)

30V

Contact Resistance

50 mΩ Max

Insulation Resistance

100 MΩ Min

Withstanding Voltage

100V AC r.m.s

Operating Temperature Range

-40ºC~+85ºC

Waterproof / Dustproof

Mounting Style

Through hole

Material-Contact

Copper alloy

Plating

Gold on contact, bright tin on tail

Plating Thickness

0.375μm

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Tray

Product Drawings

FUS327-FDBU1K.pdf

3D Drawings

fus327_ref.stp

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
