FUS478-FSBK6MA
Micro USB 5触点 ,母座 ,卧贴 (有柱)

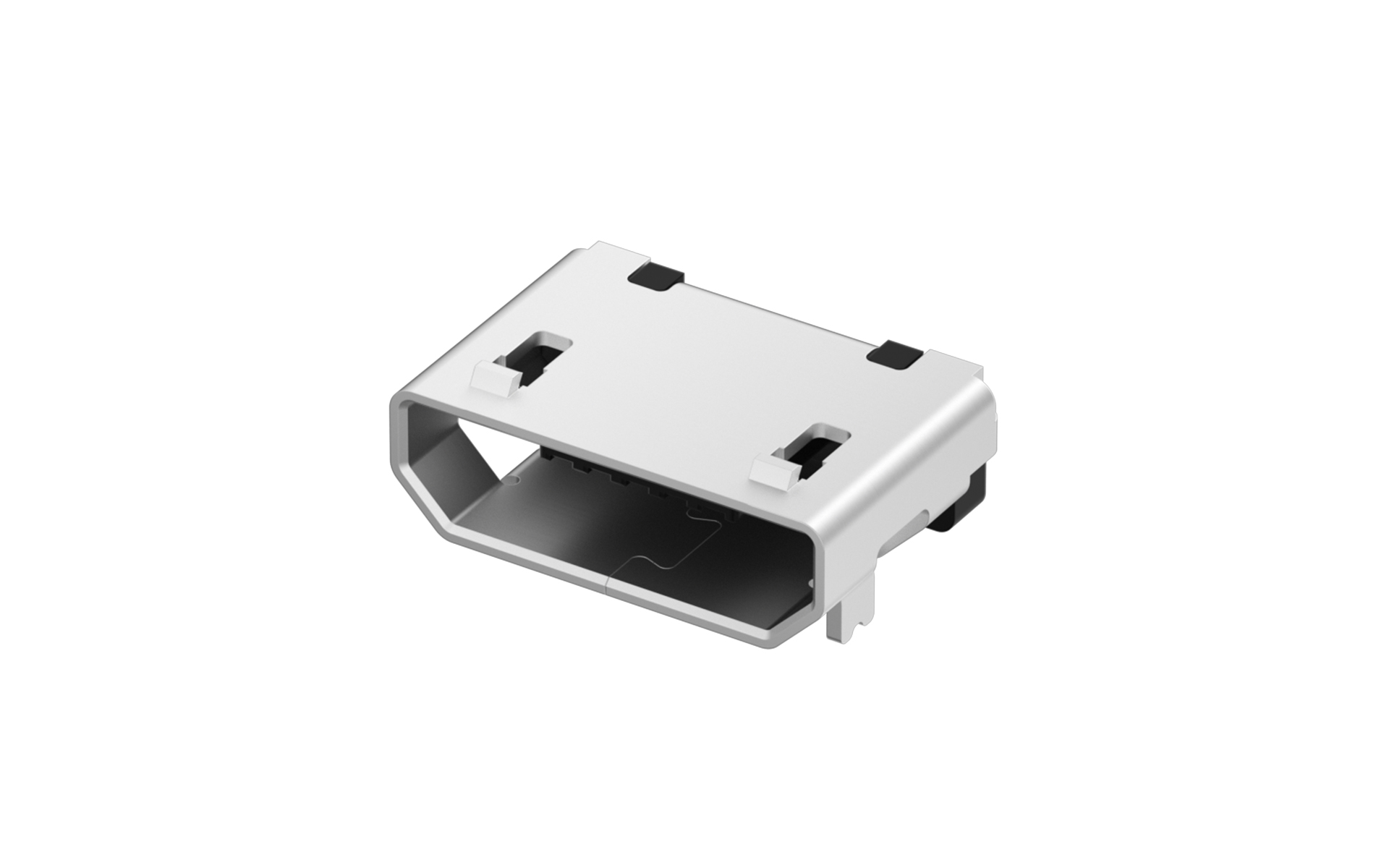

Micro USB 5Circuits, Female, 90° Angle (SMT) (With peg)
Product Number：FUS478-FSBK6MA
Production Status： Active
Micro USB 5Circuits, Female, 90° Angle (SMT) (With peg)
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{0.848161|tradeCurrencySymbol({digits:6})}}
10+ {{0.793753|tradeCurrencySymbol({digits:6})}}
50+ {{0.684936|tradeCurrencySymbol({digits:6})}}
100+ {{0.630528|tradeCurrencySymbol({digits:6})}}
500+ {{0.52171|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 18
Lead time Ship Immediately
MOQ 2000
MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
USB Connector
Product Category
USB2.0
Style
Socket
Gender
Female
Type
Micro-B type
Number of Positions
5Circuits
Peg
With peg
Orientation
Right angle(90°)
Colour
Black
Current(Max)
1.8A
Voltage(Max)
30V
Contact Resistance
30 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
100V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Waterproof / Dustproof
No
Mounting Style
SMT
Material-Contact
Copper alloy
Plating
Gold plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Reel

Product Drawings

FUS478.pdf

3D Drawings

FUS478-A_ref.stp
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
