FUS601-FSDBK6M
USB3.1 C型 24触点 90°(插件+贴片) 母座 黑色
USB3.1 C-type 24Circuits 90°Angle Female(SMT+DIP)
Product Number：FUS601-FSDBK6M
Production Status： Active

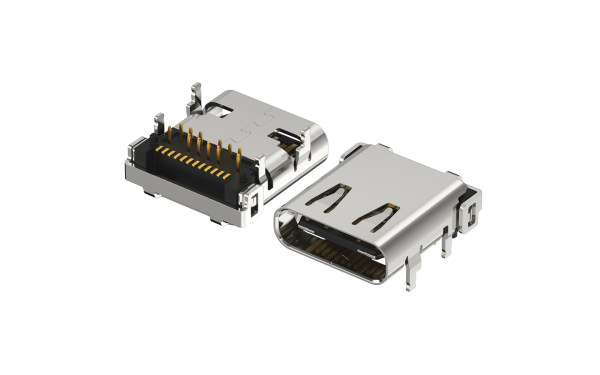

USB3.1 C-type 24Circuits 90°Angle Female(SMT+DIP)
USB3.1 C-type 24Circuits 90°Angle Female(SMT+DIP)
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

视频加载失败，请稍后重试。

{{ videoIndex + 1 }} / {{ videos.length }}
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{4.221304|tradeCurrencySymbol({digits:6})}}
10+ {{3.987046|tradeCurrencySymbol({digits:6})}}
50+ {{3.518528|tradeCurrencySymbol({digits:6})}}
100+ {{3.28427|tradeCurrencySymbol({digits:6})}}
500+ {{2.815754|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 1000
MPQ 5000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
USB Connector
Product Category
USB3.1
Style
Socket
Gender
Female
Type
Type C
Number of Positions
24Circuits
Peg
With peg
Orientation
Right angle(90°)
Colour
Black
Current(Max)
5A
Voltage(Max)
30V
Contact Resistance
50 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
100V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Waterproof / Dustproof
No
Mounting Style
Hybrid solder
Material-Contact
Copper alloy
Plating
Gold plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Reel

Product Drawings

FUS601.pdf

3D Drawings

FUS601_ref.stp

Product Specifications

FUS601Productspecification.pdf English Version
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
