FUS602-FDBK6K
IEEE1394 6Pin 母座 DIP 90°

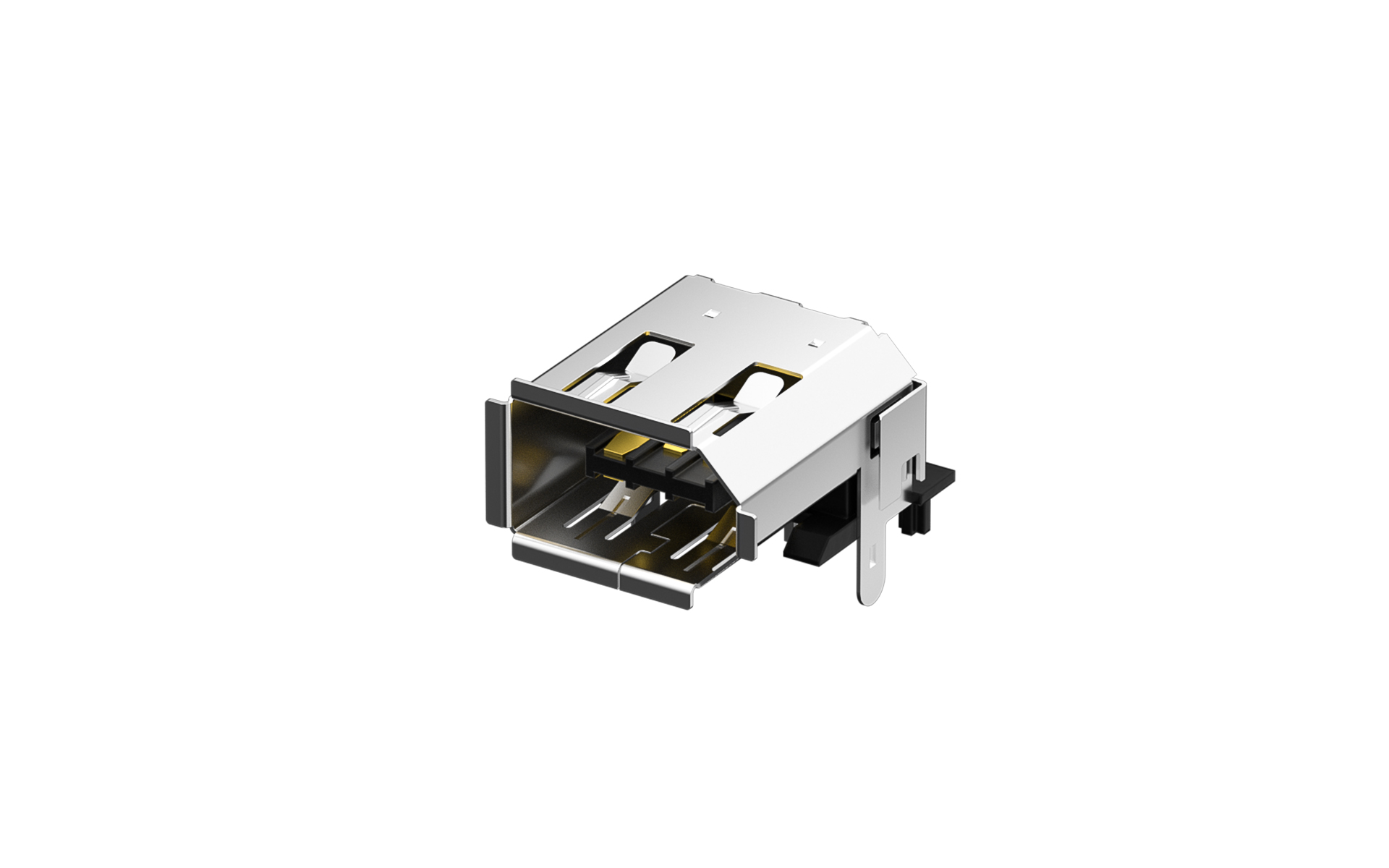

IEEE1394 6Pin Female DIP 90°
Product Number：FUS602-FDBK6K
Production Status： Active
IEEE1394 6Pin Female DIP 90°
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{2.943479|tradeCurrencySymbol({digits:6})}}
10+ {{2.776082|tradeCurrencySymbol({digits:6})}}
50+ {{2.441289|tradeCurrencySymbol({digits:6})}}
100+ {{2.273892|tradeCurrencySymbol({digits:6})}}
500+ {{1.939099|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 35
Lead time Ship Immediately
MOQ 10000
MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
IEEE1394 Connector
Style
Socket
Gender
Female
Type
Type A
Number of Positions
6Circuits
Orientation
Right angle(90°)
Colour
Black
Current(Max)
1.5A
Voltage(Max)
40V
Contact Resistance
50 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mounting Style
Through hole
Material-Contact
Copper alloy
Plating
Gold on contact, bright tin on tail
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Tray

Product Drawings

FUS602.pdf
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
