FUS630-MWSK6K
IEEE1394 6触点 ,公座 ,180°焊线式(附快速装配壳)
IEEE1394 6Circuits, Male, 180°Vertical (Welding)
Product Number：FUS630-MWSK6K
Production Status： Active

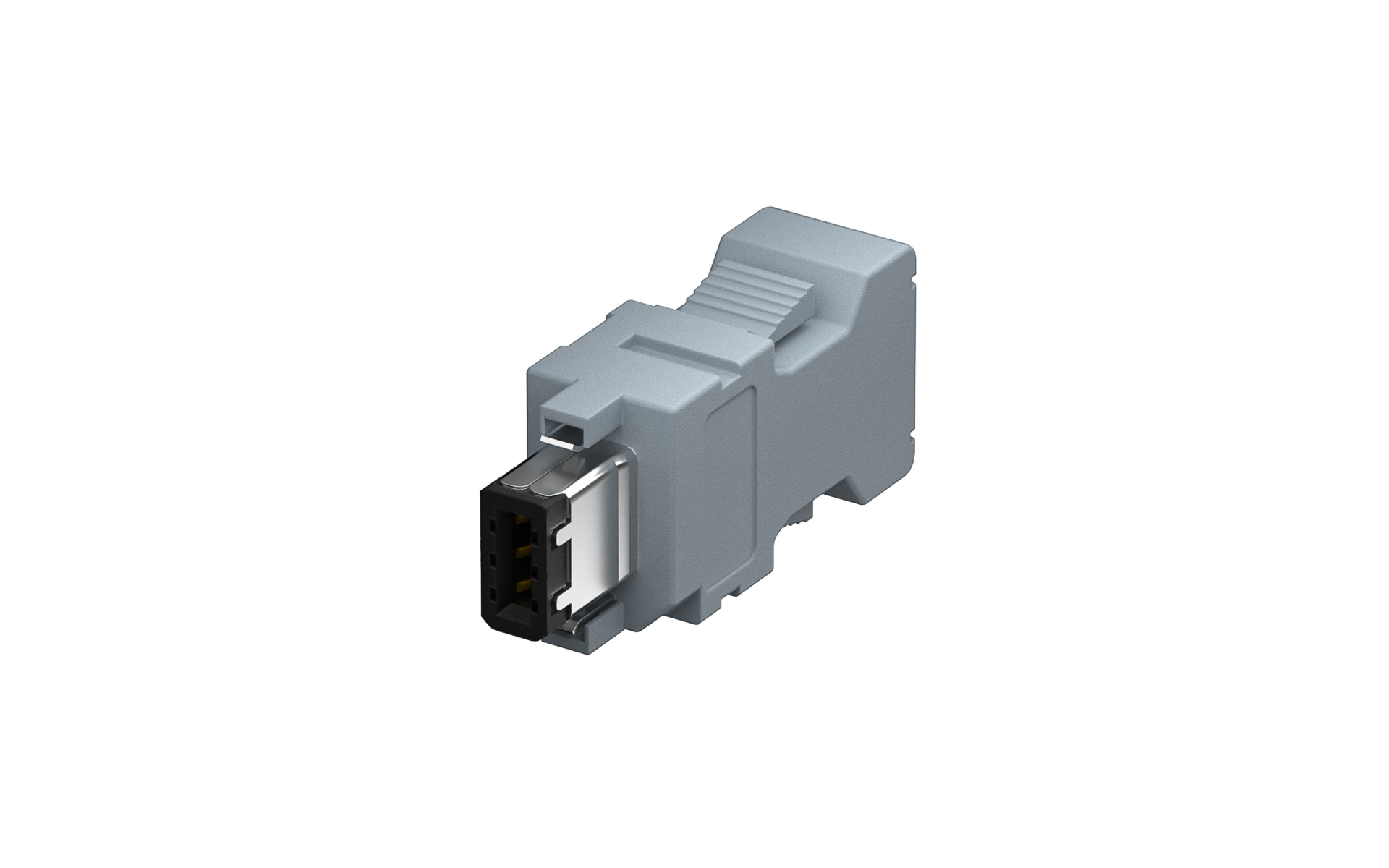

IEEE1394 6Circuits, Male, 180°Vertical (Welding)
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{12.169163|tradeCurrencySymbol({digits:6})}}
10+ {{11.502736|tradeCurrencySymbol({digits:6})}}
50+ {{10.169879|tradeCurrencySymbol({digits:6})}}
100+ {{9.50345|tradeCurrencySymbol({digits:6})}}
500+ {{8.170594|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 2
Lead time Ship Immediately
MOQ 1000
MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
IEEE1394 Connector
Style
Plug
Gender
Male
Type
Type A
Number of Positions
6Circuits
Orientation
Vertical(180°)
Colour
Black
Current(Max)
1A
Voltage(Max)
30V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mounting Style
Soldering
Material-Contact
Copper alloy
Plating
Gold plated
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Tray

Product Drawings

FUS630.pdf

3D Drawings

FUS630-MWSK6K_REF.stp
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
