FUS638-FSBBKM
防水USB3.1 C型 16触点(表面贴装) ,母座 ,卧贴
Waterproof USB3.1 C-type 16Circuits, FEMALE, 90° Angle(SMT)
Product Number：FUS638-FSBBKM
Production Status： Active

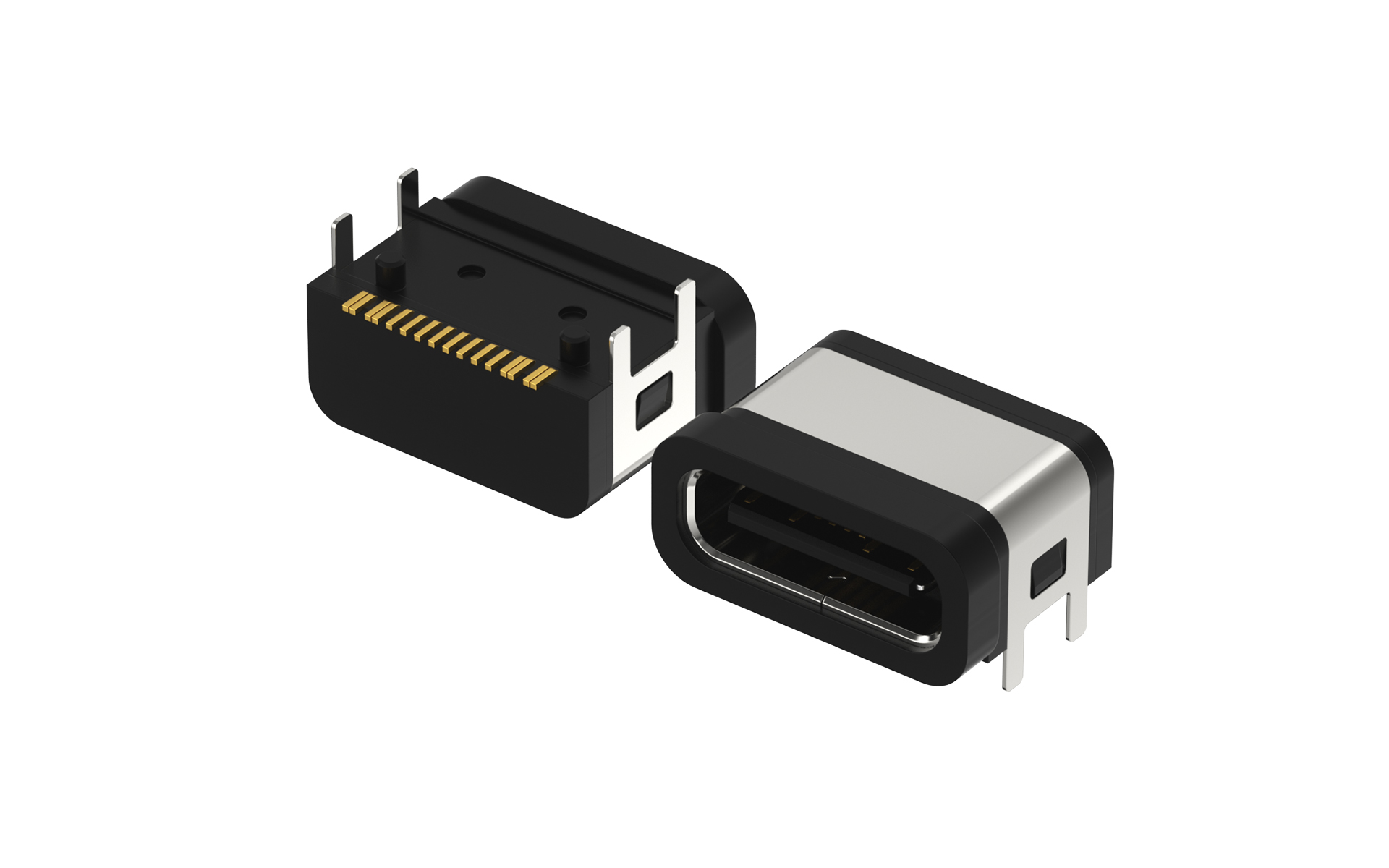

Waterproof USB3.1 C-type 16Circuits, FEMALE, 90° Angle(SMT)
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{7.774815|tradeCurrencySymbol({digits:6})}}
10+ {{7.347883|tradeCurrencySymbol({digits:6})}}
50+ {{6.494018|tradeCurrencySymbol({digits:6})}}
100+ {{6.067085|tradeCurrencySymbol({digits:6})}}
500+ {{5.213221|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 554
Lead time Ship Immediately
MOQ 1200
MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
USB Connector
Product Category
USB3.1
Style
Socket
Gender
Female
Type
Type C
Number of Positions
16Circuits
Peg
With peg
Orientation
Right angle(90°)
Colour
Black
Current(Max)
5A
Voltage(Max)
5V
Contact Resistance
50 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
100V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Waterproof / Dustproof
Yes
Ingress Protection
IPX7
Mounting Style
SMT
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Reel

Product Drawings

FUS638-FSBBKM.pdf
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
