FUS667-FDSBKK
组合连接器 USB3.1 C型 14触点 / A型 4触点 ,母座 ,180°插件
Combo USB3.1 C-type 14Circuits / A-type 4Circuits, FEMALE, 180° Vertical(DIP)
Product Number：FUS667-FDSBKK
Production Status： Active

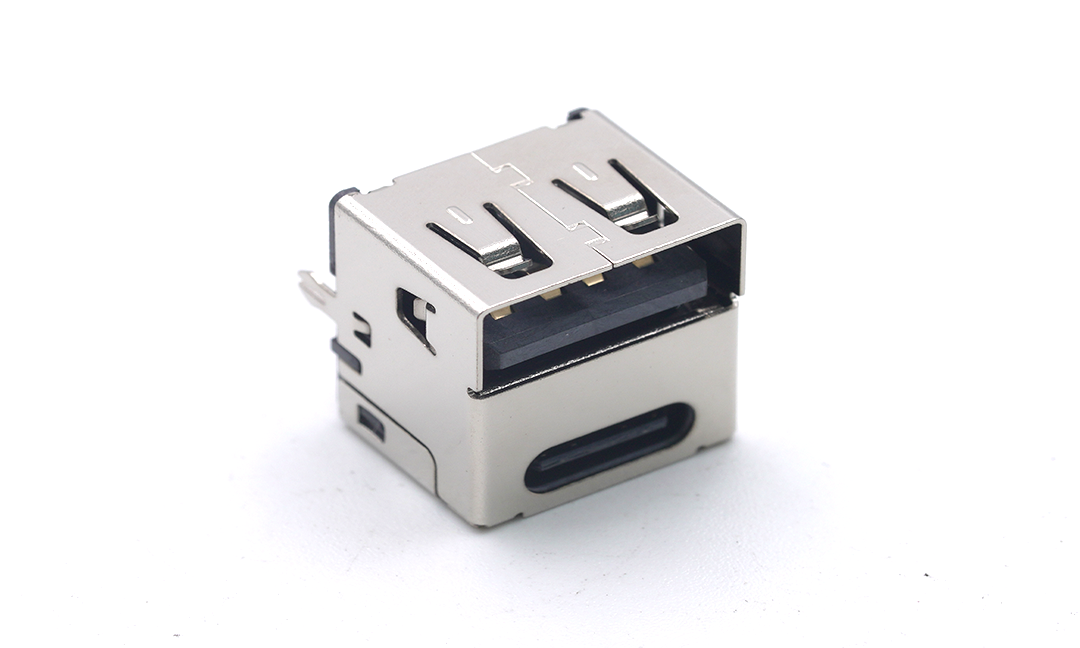

Combo USB3.1 C-type 14Circuits / A-type 4Circuits, FEMALE, 180° Vertical(DIP)
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Product Catalog
Connectors
Product System
USB Connector
Product Category
USB3.1
Style
Socket
Gender
Female
Type
Mixed
Number of Positions
18Circuits
Orientation
Vertical(180°)
Colour
Black
Current(Max)
8A
Voltage(Max)
5V
Contact Resistance
50 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
100V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Waterproof / Dustproof
No
Mounting Style
Through hole
Material-Contact
Copper alloy
Plating
Gold on contact, bright tin on tail
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Tray

Product Drawings

FUS667-FDSBKK.pdf
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
