板装插座 0.80mm ,12位 ,立贴 ,镀金 ,LCP
FWF08001-S12S13W5M

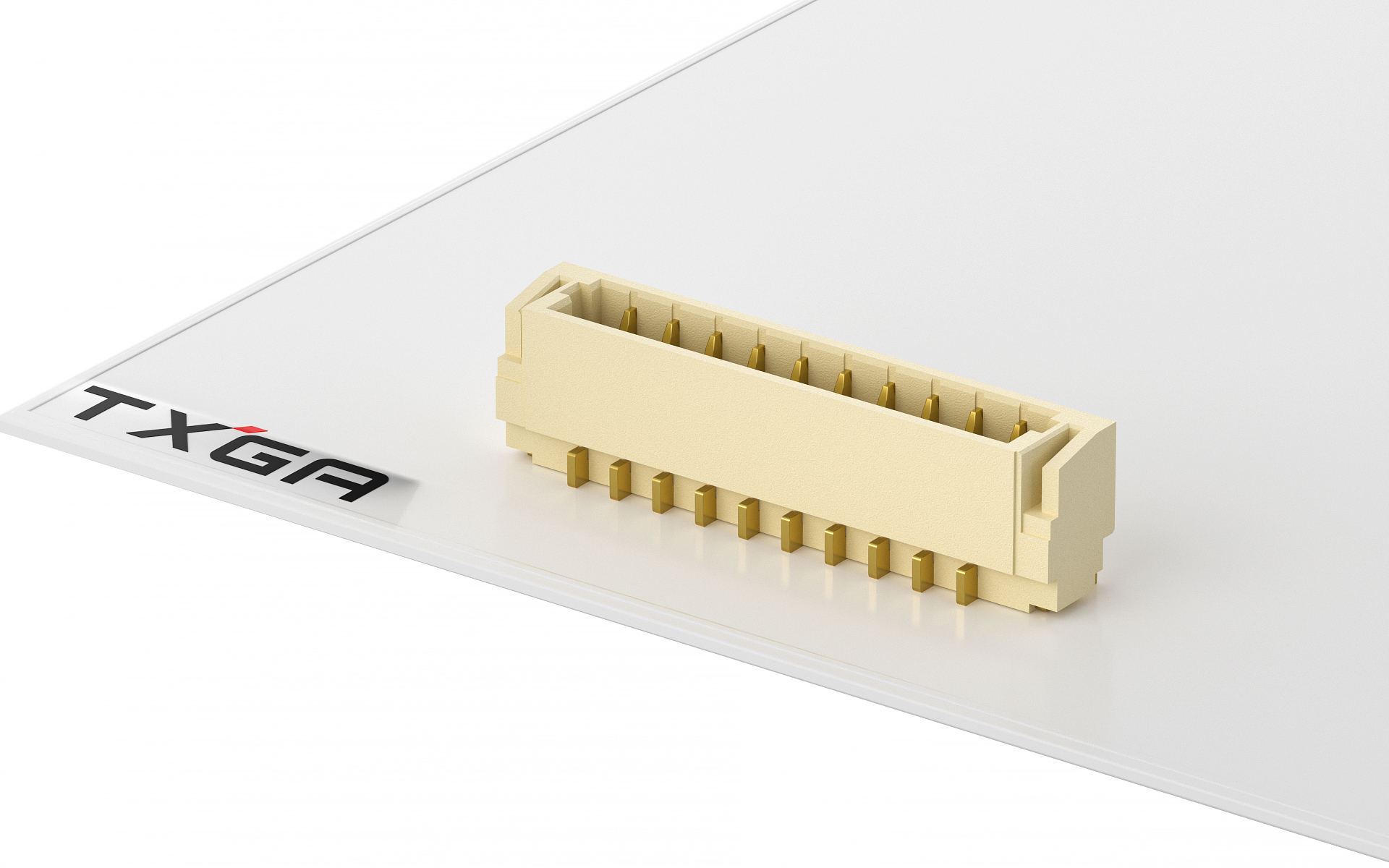

Wafer 0.80mm, 12Circuits, 180° Vertical(SMT), Gold, LCP
FWF08001-S12S13W5M Copy
Share this product
Stock(pcs)
1039
Lead time

≦ 1039 In stock

＞ 1039 Estimated delivery date 2025-08-15

MPQ
2000
MOQ
2000
Quantity Unit Price
1 $0.482746
10 $0.321831
50 $0.275855
100 $0.252867
500 $0.213788
1000 $0.155743
5000 $0.153444
10000 $0.151146
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
0.8mm
Row Option
Single row
Number of Positions
12Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
30V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF08001 Series

Product Specifications

FWF08001Productspecification.pdf
Plug
Wire to board housing 0.8mm, 12Circuits, PA46

FHG08002-S12M6W5B

Wire to board housing 0.8mm, 12Circuits, PA46
