板装插座 0.80mm ,16位 ,立贴 ,镀金 ,LCP

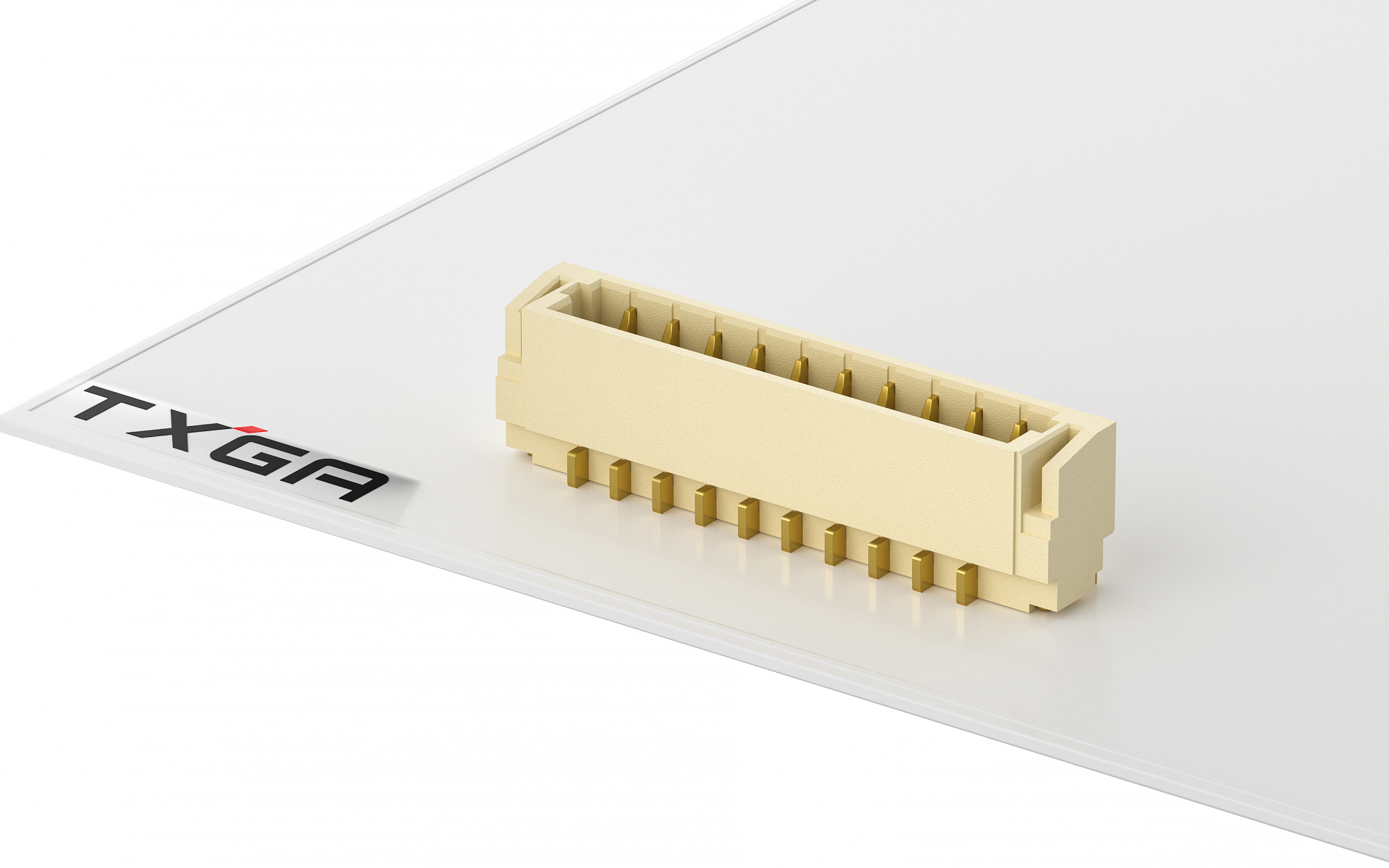

FWF08001-S16S13W5M
Wafer 0.80mm, 16Circuits, 180° Vertical(SMT), Gold, LCP
FWF08001-S16S13W5M Copy
Share this product
Stock(pcs)
1412
Lead time

≦ 1412 In stock

＞ 1412 Estimated delivery date 2025-10-13

MPQ
2000
MOQ
2000
Quantity Unit Price
1 $0.425288
10 $0.368583
50 $0.306208
100 $0.279273
500 $0.245250
1000 $0.191380
5000 $0.188544
10000 $0.185709

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
0.8mm
Row Option
Single row
Number of Positions
16Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
30V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF08001 Series

Product Specifications

FWF08001Productspecification.pdf
Plug
Wire to board housing 0.8mm, 16Circuits, PA46

FHG08002-S16M6W5B

Wire to board housing 0.8mm, 16Circuits, PA46
