板装插座 1mm 立贴 16位 (9T)
FWF10002-S16S24W5M

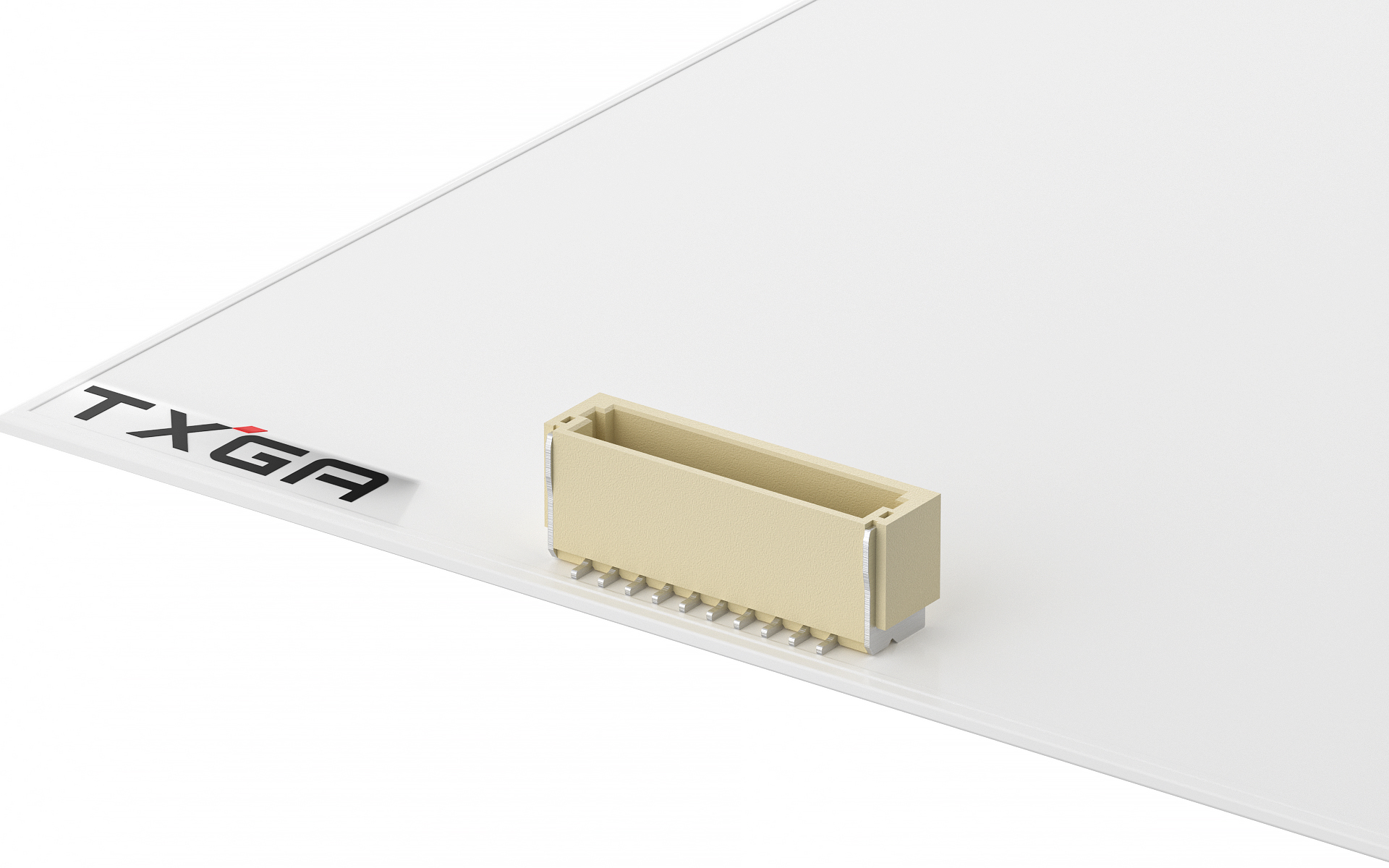

Wafer 1mm 180°Vertical 16Circuits (SMT)
FWF10002-S16S24W5M Copy
Share this product
Stock(pcs)
989
Lead time

≦ 989 In stock

＞ 989 Estimated delivery date 2025-05-30

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.341982
10 $0.237055
50 $0.205966
100 $0.190422
500 $0.160110
1000 $0.118528
5000 $0.116973
10000 $0.115419
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1mm
Row Option
Single row
Number of Positions
16Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF10002series

Product Specifications

FWF10002Productspecification.pdf
Plug
Wire to board housing 1mm 16Circuits

FHG10001-S16M2W1B

Wire to board housing 1mm 16Circuits
