板装插座 1mm 立贴 16位 (9T)(镀金)
FWF10003-D16S14W5M

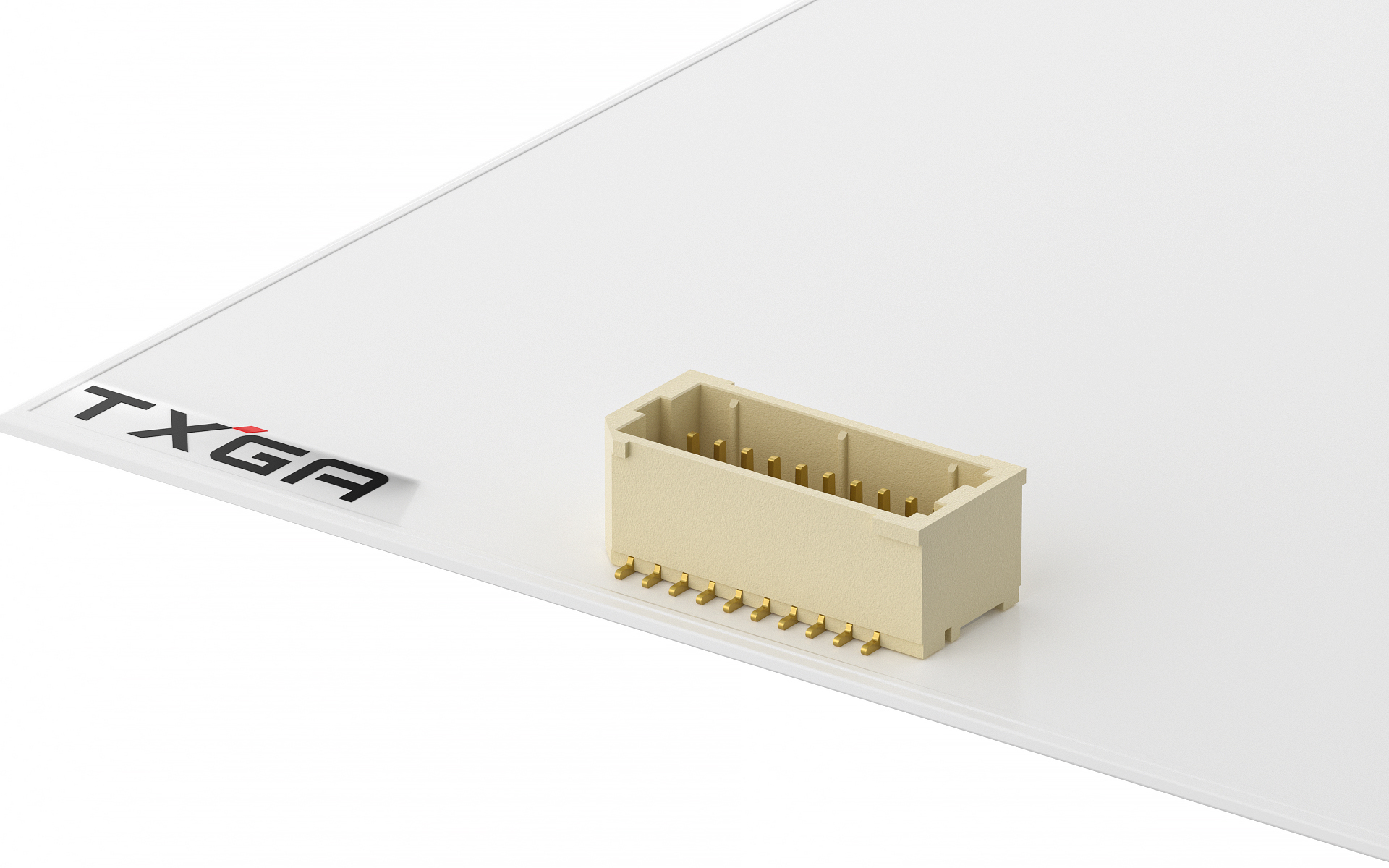

Wafer 1mm 180°Vertical 16Circuits (SMT)(Gold-Plated)
FWF10003-D16S14W5M Copy
Share this product
Stock(pcs)
1374
Lead time

≦ 1374 In stock

＞ 1374 Estimated delivery date 2025-12-29

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.393208
10 $0.325801
50 $0.287416
100 $0.266820
500 $0.228435
1000 $0.183029
5000 $0.180220
10000 $0.176476

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1mm
Row Option
Dual row
Number of Positions
16Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

Drawing-FWF10003

Product Specifications

FWF10003Productspecification.pdf
Plug
Wire to board housing 1mm 16Circuits

FHG10002-D16M2W5B

Wire to board housing 1mm 16Circuits
