板装插座 1mm 立贴 30位 (9T)(镀金)
FWF10003-D30S14W5M

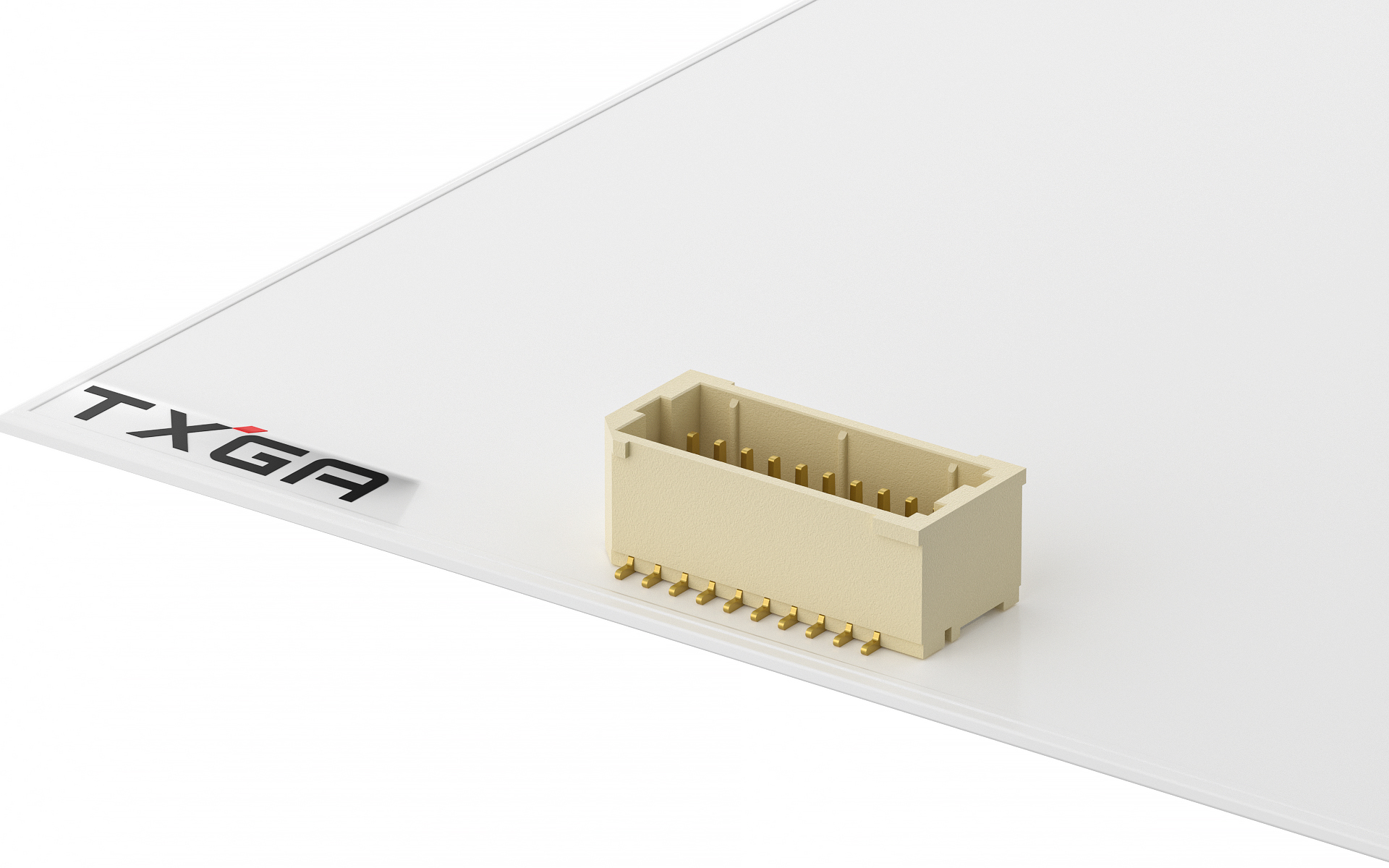

Wafer 1mm 180°Vertical 30Circuits (SMT)(Gold-Plated)
FWF10003-D30S14W5M Copy
Share this product
Stock(pcs)
613
Lead time

≦ 613 In stock

＞ 613 Estimated delivery date 2025-10-13

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.458148
10 $0.387850
50 $0.344217
100 $0.318765
500 $0.279980
1000 $0.213318
5000 $0.209682
10000 $0.204834

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1mm
Row Option
Dual row
Number of Positions
30Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

Drawing-FWF10003

3D Drawings

FWF10003-D30S14W5M_REF

Product Specifications

FWF10003Productspecification.pdf
Plug
Wire to board housing 1mm 30Circuits

FHG10002-D30M2W5B

Wire to board housing 1mm 30Circuits
