板装插座 1mm 卧贴 10位 (9T)(镀金)
FWF10004-D10B14W5M

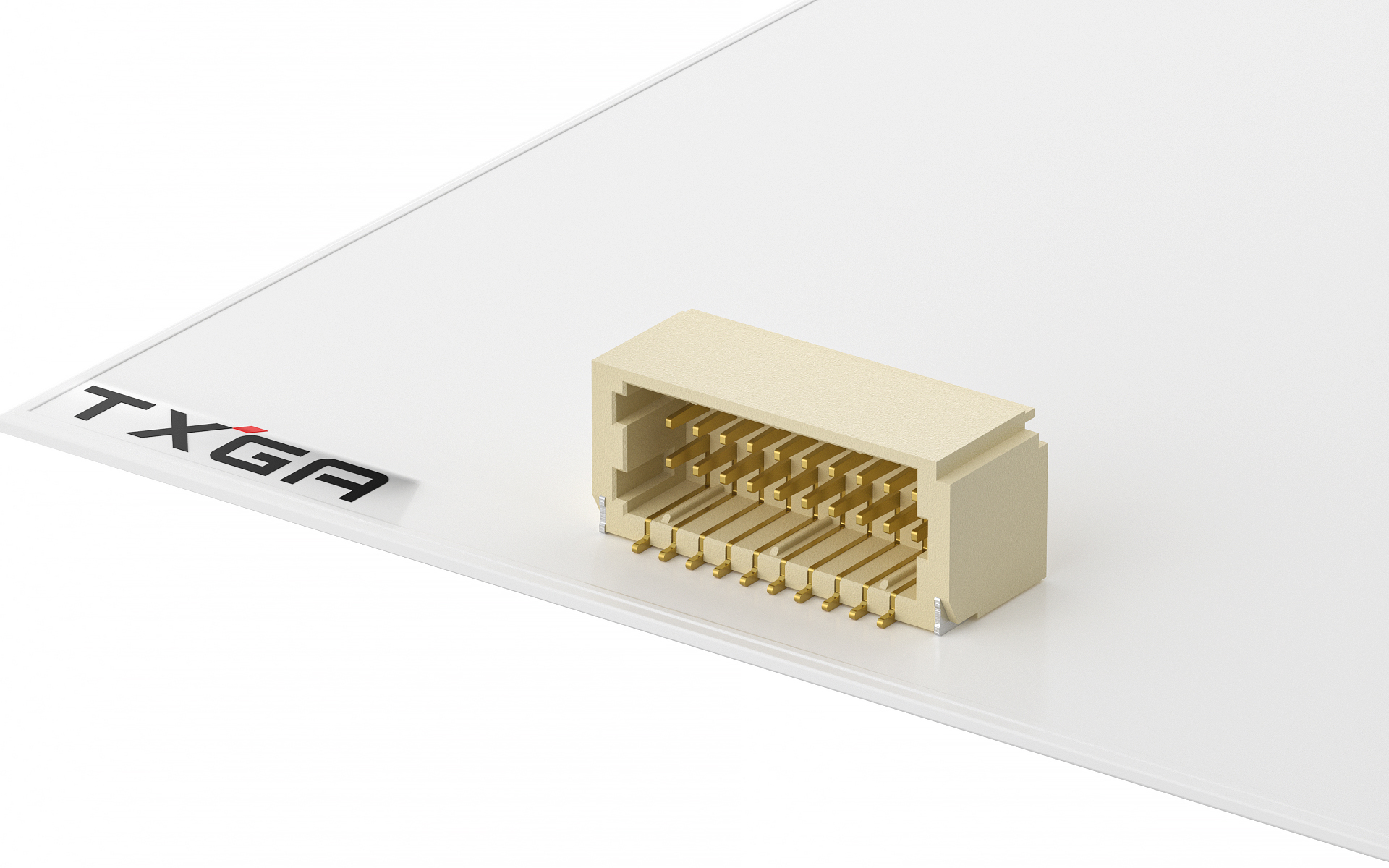

Wafer 1mm 90°Angle 10Circuits (SMT)(Gold-Plated)
FWF10004-D10B14W5M Copy
Share this product
Stock(pcs)
818
Lead time

≦ 818 In stock

＞ 818 Estimated delivery date 2025-10-13

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.353043
10 $0.235362
50 $0.201739
100 $0.184927
500 $0.156348
1000 $0.117261
5000 $0.114739
10000 $0.113058

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1mm
Row Option
Dual row
Number of Positions
10Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF10004 series

3D Drawings

FWF10004-D10B14W5M-REF

Product Specifications

FWF10004Productspecification.pdf
Plug
Wire to board housing 1mm 10Circuits

FHG10002-D10M2W5B

Wire to board housing 1mm 10Circuits
