板装插座 1mm 卧贴 30位 (9T)(镀金)
FWF10004-D30B14W5M

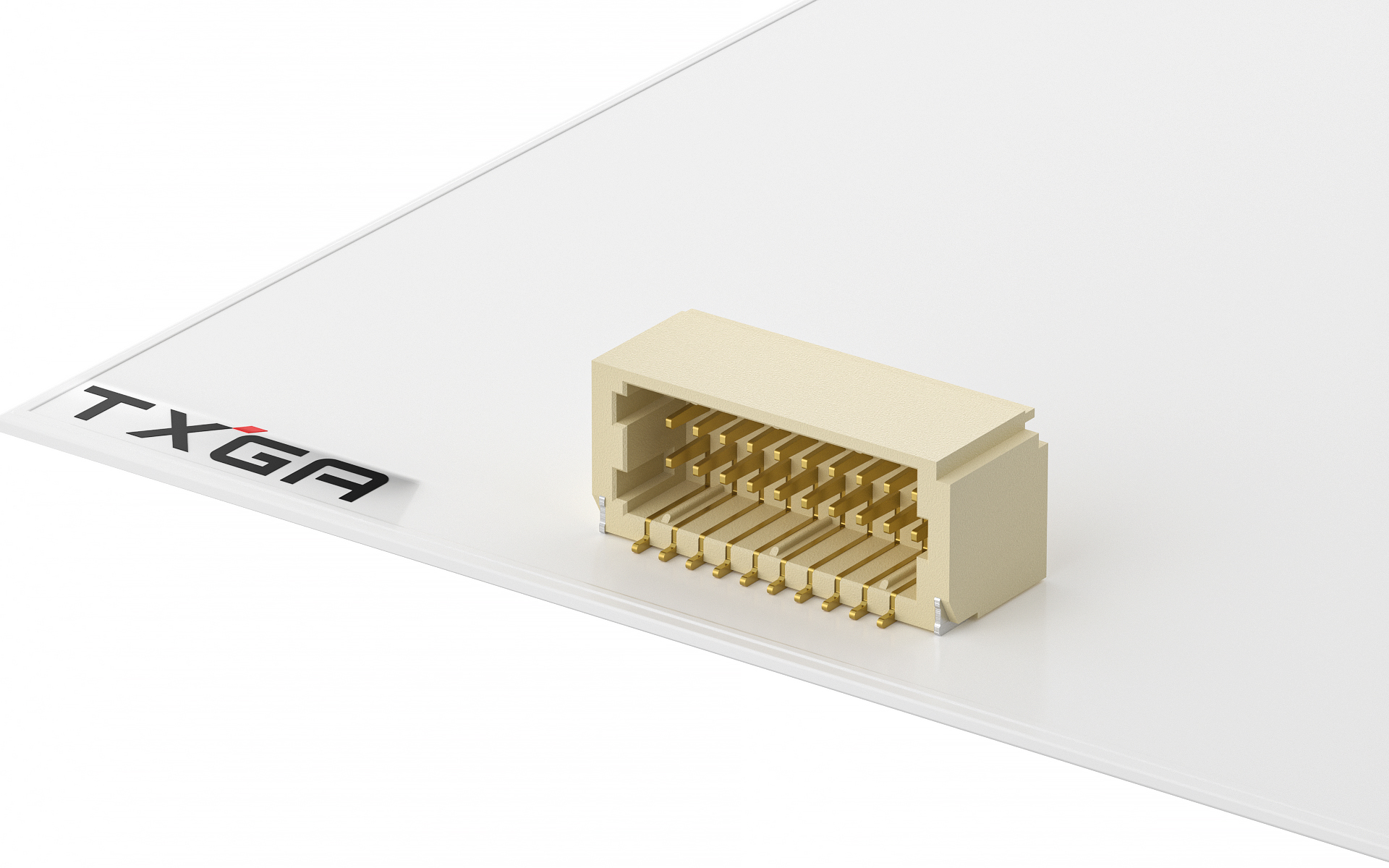

Wafer 1mm 90°Angle 30Circuits (SMT)(Gold-Plated)
FWF10004-D30B14W5M Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-12-29
MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.364687
10 $0.316062
50 $0.273516
100 $0.249203
500 $0.210303
1000 $0.168972
5000 $0.165325
10000 $0.162894

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1mm
Row Option
Dual row
Number of Positions
30Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF10004 series

3D Drawings

FWF10004-D30B14W5M_REF

Product Specifications

FWF10004Productspecification.pdf
Plug
Wire to board housing 1mm 30Circuits

FHG10002-D30M2W5B

Wire to board housing 1mm 30Circuits
