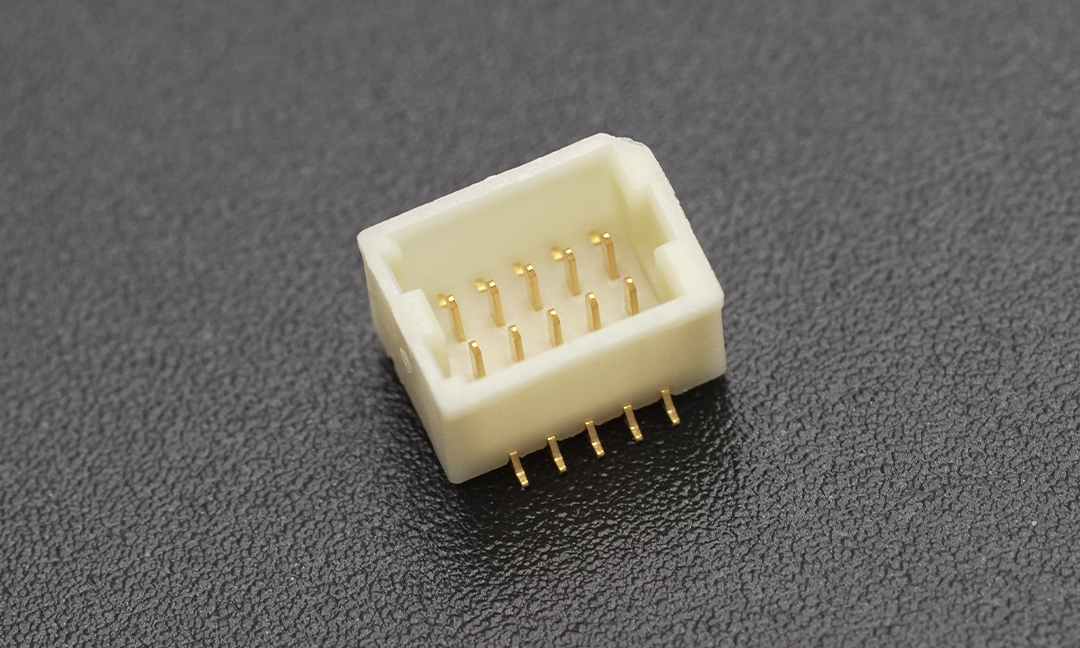

FWF10007-D10S14W5M Wafer 1mm 180°Vertical 10Circuits (SMT)(Gold-Plated)

FWF10007-D10S14W5M

Wafer 1mm 180°Vertical 10Circuits (SMT)(Gold-Plated)

Product Number：FWF10007-D10S14W5M

Production Status： Active

Wafer 1mm 180°Vertical 10Circuits (SMT)(Gold-Plated)

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{3.178257\|tradeCurrencySymbol({digits:6})}}
10+	{{2.75449\|tradeCurrencySymbol({digits:6})}}
50+	{{2.383693\|tradeCurrencySymbol({digits:6})}}
100+	{{2.171809\|tradeCurrencySymbol({digits:6})}}
500+	{{1.832795\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 1000

MPQ 8000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Wire to Board/Wire Connector

Style

Socket

Gender

Female

Pitch

1mm

Row Option

Dual row

Number of Positions

10Circuits

Orientation

Vertical(180°)

Colour

Natural

Current(Max)

Voltage(Max)

50V

Contact Resistance

20 mΩ Max

Insulation Resistance

100 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

Mounting Style

SMT

Material-Contact

Copper alloy

Plating

Gold plated

Material-Resin

PA6T

Flammability Rating

UL94 V-0

Packaging

Reel

Product Drawings

Drawing-FWF10007.pdf

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
