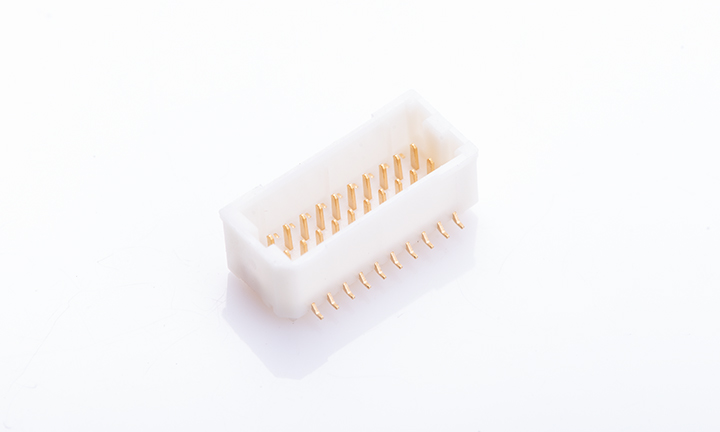

板装插座 1mm 立贴 20位 (6T)(镀金)
FWF10007-D20S14W5M
Wafer 1mm 180°Vertical 20Circuits (SMT)(Gold-Plated)
FWF10007-D20S14W5M Copy
Share this product
Stock(pcs)
239
Lead time

≦ 239 In stock

＞ 239 Estimated delivery date 2025-10-13

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.463902
10 $0.402049
50 $0.347927
100 $0.317000
500 $0.267517
1000 $0.214941
5000 $0.210302
10000 $0.207210

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1mm
Row Option
Dual row
Number of Positions
20Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Copper alloy
Plating
Gold plated
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

Drawing-FWF10007
Plug
Wire to board housing 1mm 20Circuits

FHG10002-D20M2W5B

Wire to board housing 1mm 20Circuits
