板装插座 1.20mm 卧贴 2位

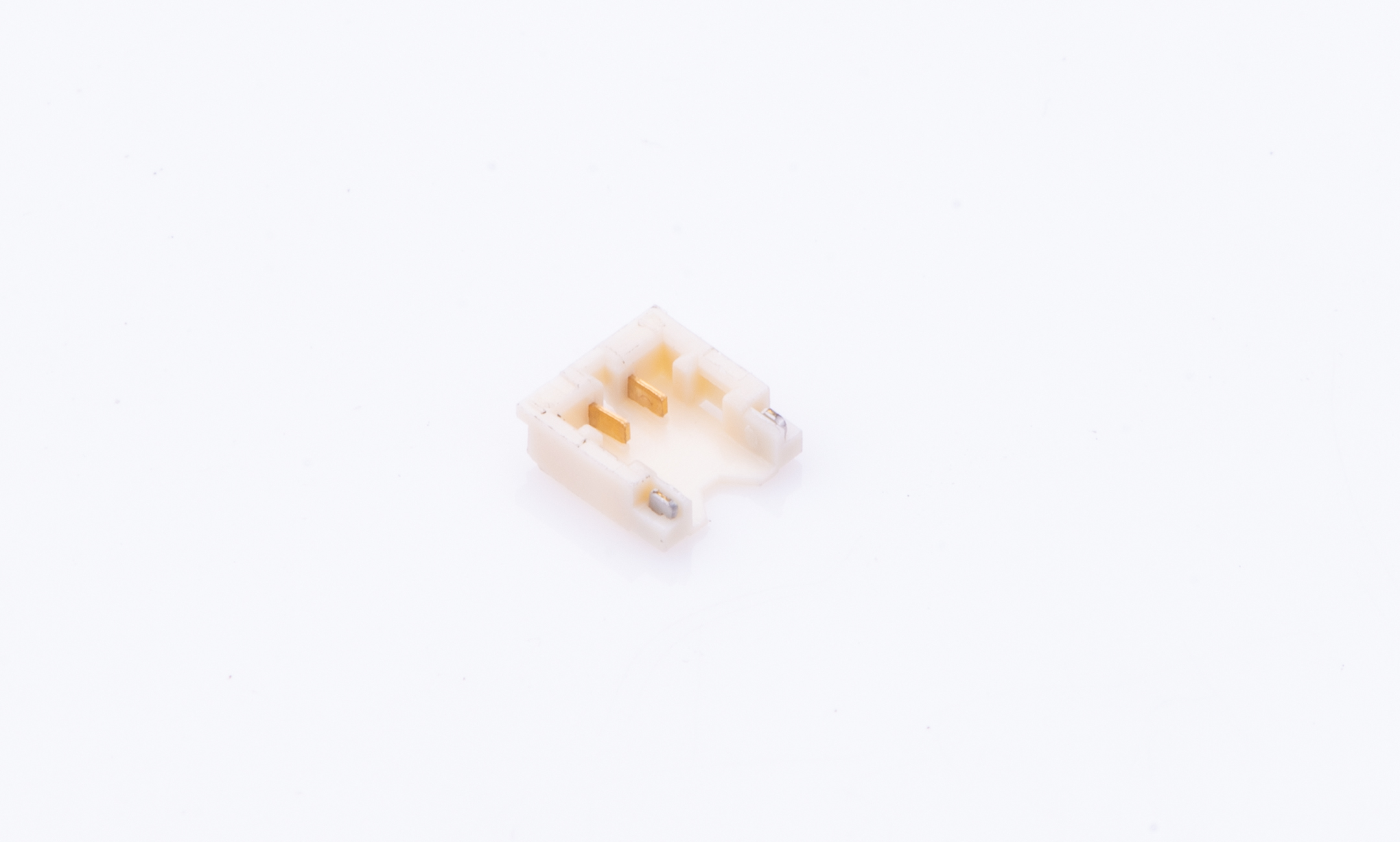

FWF12001-S02B14W1M
Wafer 1.20mm 90°Angle 2Circuits (SMT)
FWF12001-S02B14W1M Copy
Share this product
Stock(pcs)
20
Lead time

≦ 20 In stock

＞ 20 Estimated delivery date 2025-10-13

MPQ
3000
MOQ
3000
Quantity Unit Price
1 $0.182992
10 $0.172136
50 $0.150424
100 $0.139568
500 $0.117856
1000 $0.087567
2500 $0.086368
5000 $0.085168
10000 $0.083969
25000 $0.082769

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1.2mm
Row Option
Single row
Number of Positions
2Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
1.5A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF12001series.pdf
