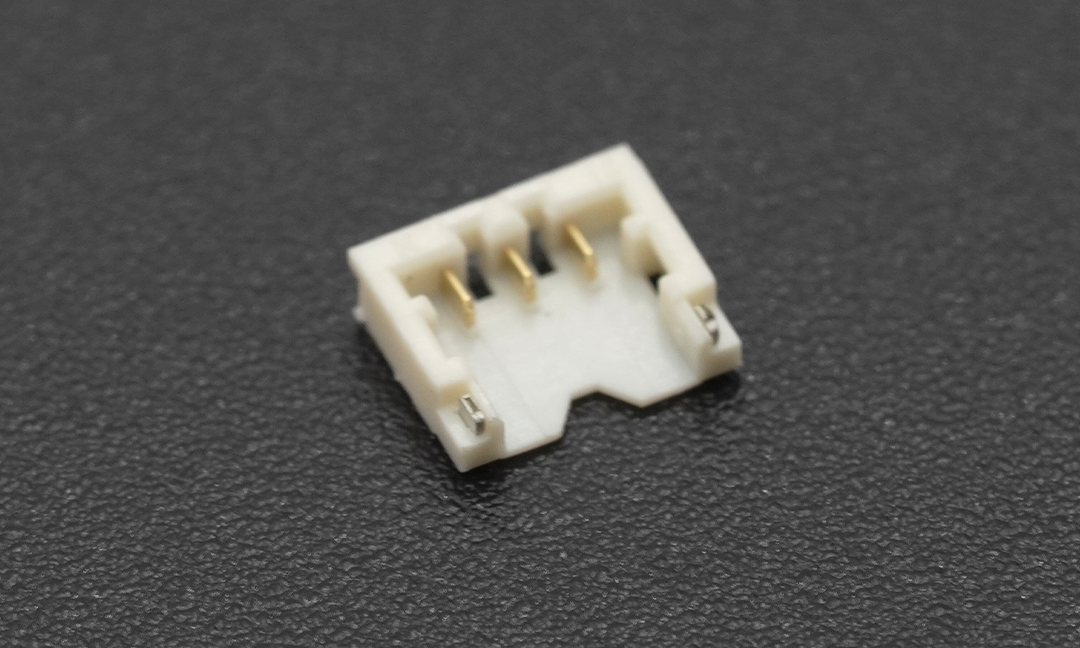

FWF12001-S03B14W1M Wafer 1.20mm 90°Angle 3Circuits (SMT)

FWF12001-S03B14W1M

Wafer 1.20mm 90°Angle 3Circuits (SMT)

Product Number：FWF12001-S03B14W1M

Production Status： Active

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{2.170208\|tradeCurrencySymbol({digits:6})}}
10+	{{2.041461\|tradeCurrencySymbol({digits:6})}}
50+	{{1.783967\|tradeCurrencySymbol({digits:6})}}
100+	{{1.655219\|tradeCurrencySymbol({digits:6})}}
500+	{{1.397725\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 2826

Lead time Ship Immediately

MOQ 3000

MPQ 30000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Wire to Board/Wire Connector

Style

Socket

Gender

Female

Pitch

1.2mm

Row Option

Single row

Number of Positions

3Circuits

Orientation

Right angle(90°)

Colour

Natural

Current(Max)

1.5A

Voltage(Max)

50V

Contact Resistance

20 mΩ Max

Insulation Resistance

100 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

Mounting Style

SMT

Material-Contact

Phosphor bronze

Plating

Gold plated

Material-Resin

PA9T

Flammability Rating

UL94 V-0

Packaging

Reel

Product Drawings

FWF12001series.pdf

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
