板装插座 1.20mm 卧贴 7位

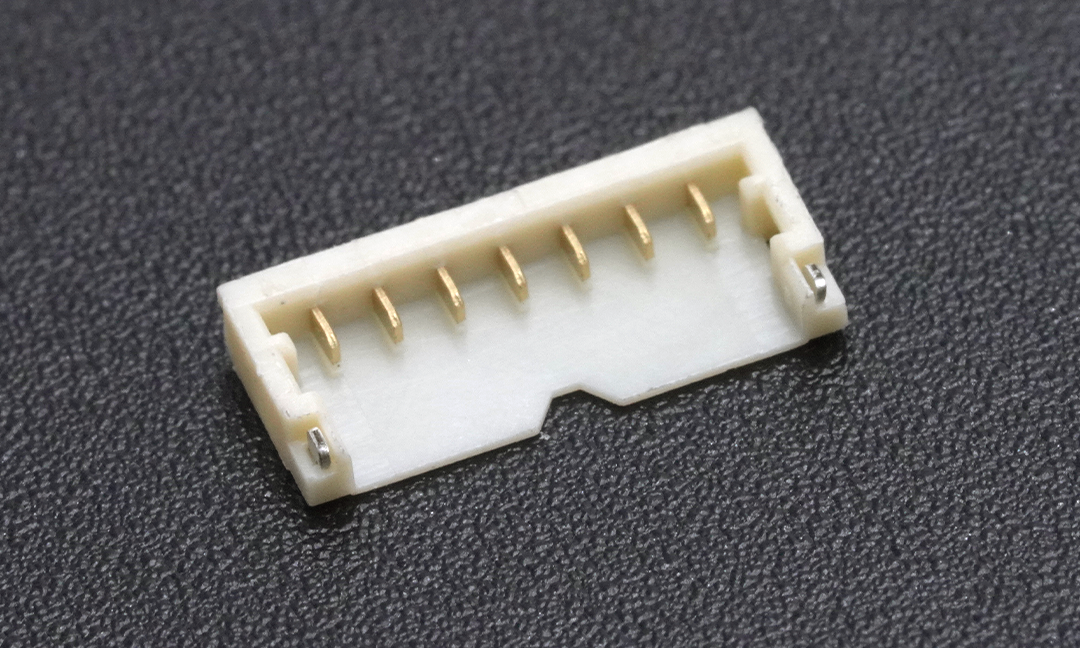

FWF12001-S07B14W1M
Wafer 1.20mm 90°Angle 7Circuits (SMT)
FWF12001-S07B14W1M Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-10-13
MPQ
3000
MOQ
3000
Quantity Unit Price
1 $0.455618
10 $0.429146
50 $0.376201
100 $0.349729
500 $0.296785
1000 $0.229371
2500 $0.226083
5000 $0.222794
10000 $0.219506
25000 $0.216217

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1.2mm
Row Option
Single row
Number of Positions
7Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
1.5A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF12001series.pdf
