板装插座 1.25mm 卧贴 6位 (9T)

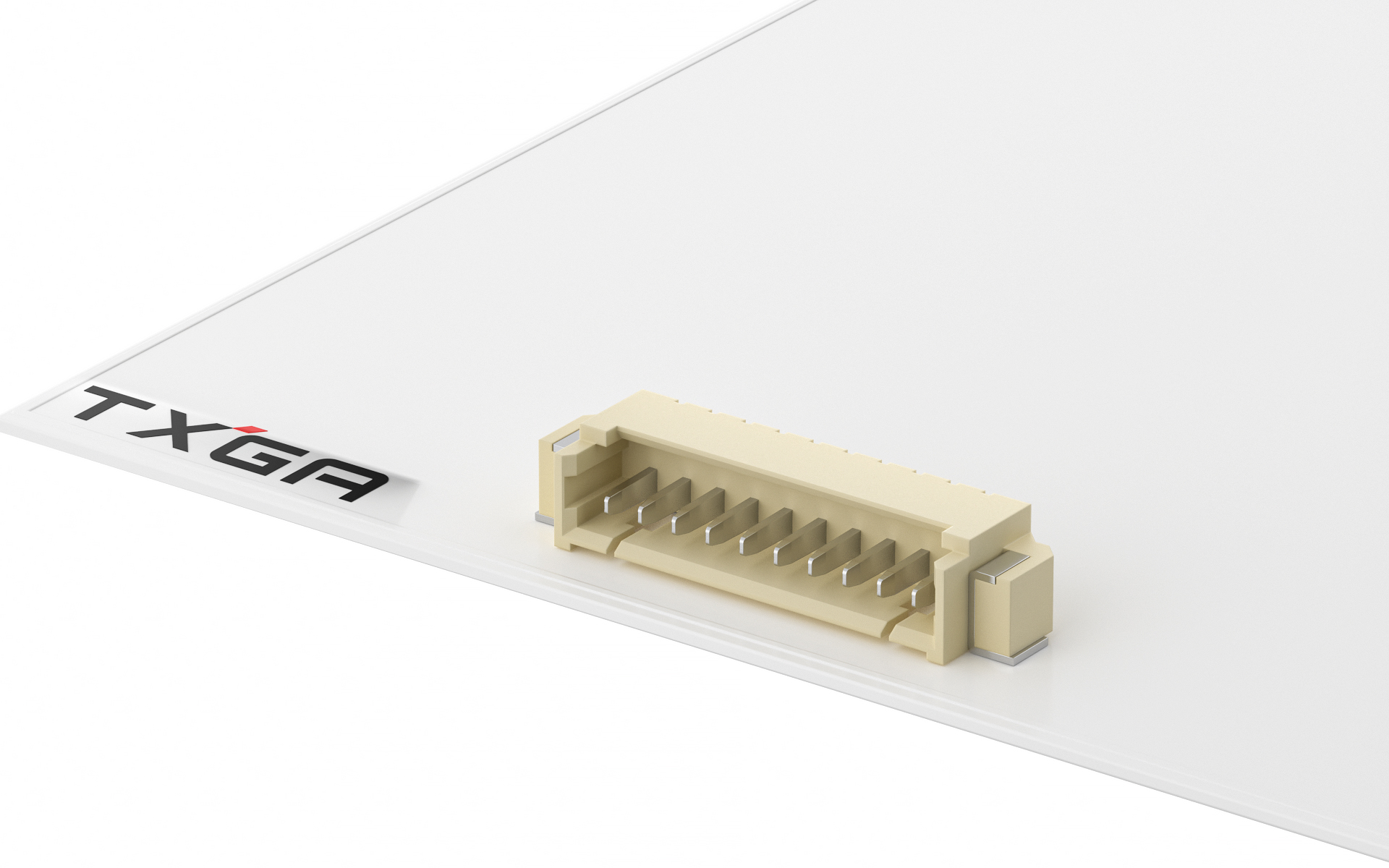

FWF12504-S06B24W5M
Wafer 1.25mm 90°Angle 6Circuits (SMT)
FWF12504-S06B24W5M Copy
Share this product
Stock(pcs)
367
Lead time

≦ 367 In stock

＞ 367 Estimated delivery date 2025-12-29

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.248914
10 $0.112523
50 $0.093769
100 $0.081835
500 $0.075015
1000 $0.046373
5000 $0.045691
10000 $0.045009

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1.25mm
Row Option
Single row
Number of Positions
6Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
125V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF12504 series

Product Specifications

FWF12504Productspecification.pdf
Plug
Wire to board housing 1.25mm 6Circuits

FHG12502-S06M2W1B

Wire to board housing 1.25mm 6Circuits
