板装插座 1.25mm 卧贴 11位 (9T)
FWF12504-S11B24W5M

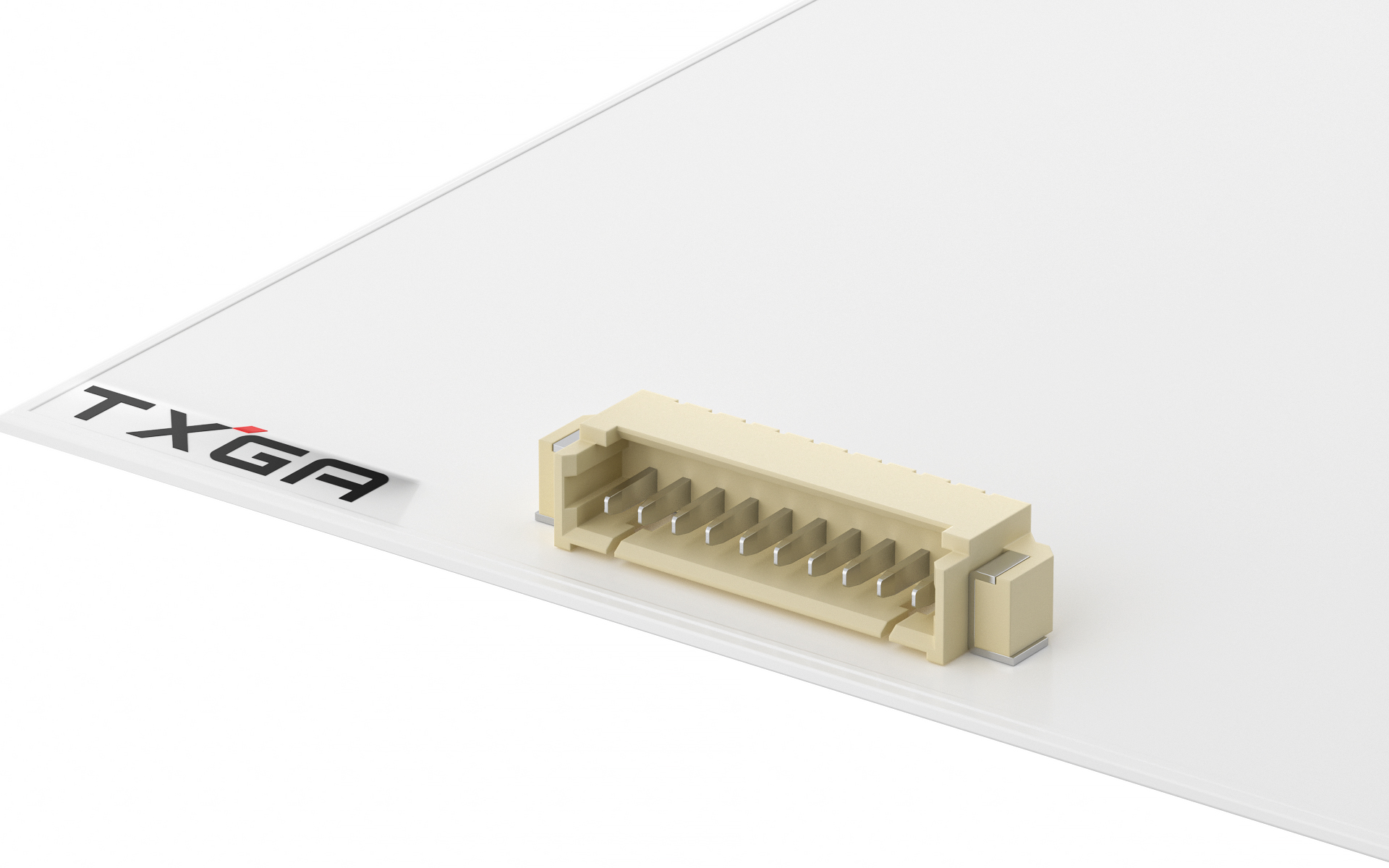

Wafer 1.25mm 90°Angle 11Circuits (SMT)
FWF12504-S11B24W5M Copy
Share this product
Stock(pcs)
262
Lead time

≦ 262 In stock

＞ 262 Estimated delivery date 2025-10-14

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.220347
10 $0.146898
50 $0.125913
100 $0.115420
500 $0.097582
1000 $0.071088
5000 $0.070039
10000 $0.068990

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1.25mm
Row Option
Single row
Number of Positions
11Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
125V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF12504 series

3D Drawings

FWF12504-S11B24W5M_REF

Product Specifications

FWF12504Productspecification.pdf
Plug
Wire to board housing 1.25mm 11Circuits

FHG12502-S11M2W1B

Wire to board housing 1.25mm 11Circuits
