板装插座 1.25mm 插件 90° 10位 (46)

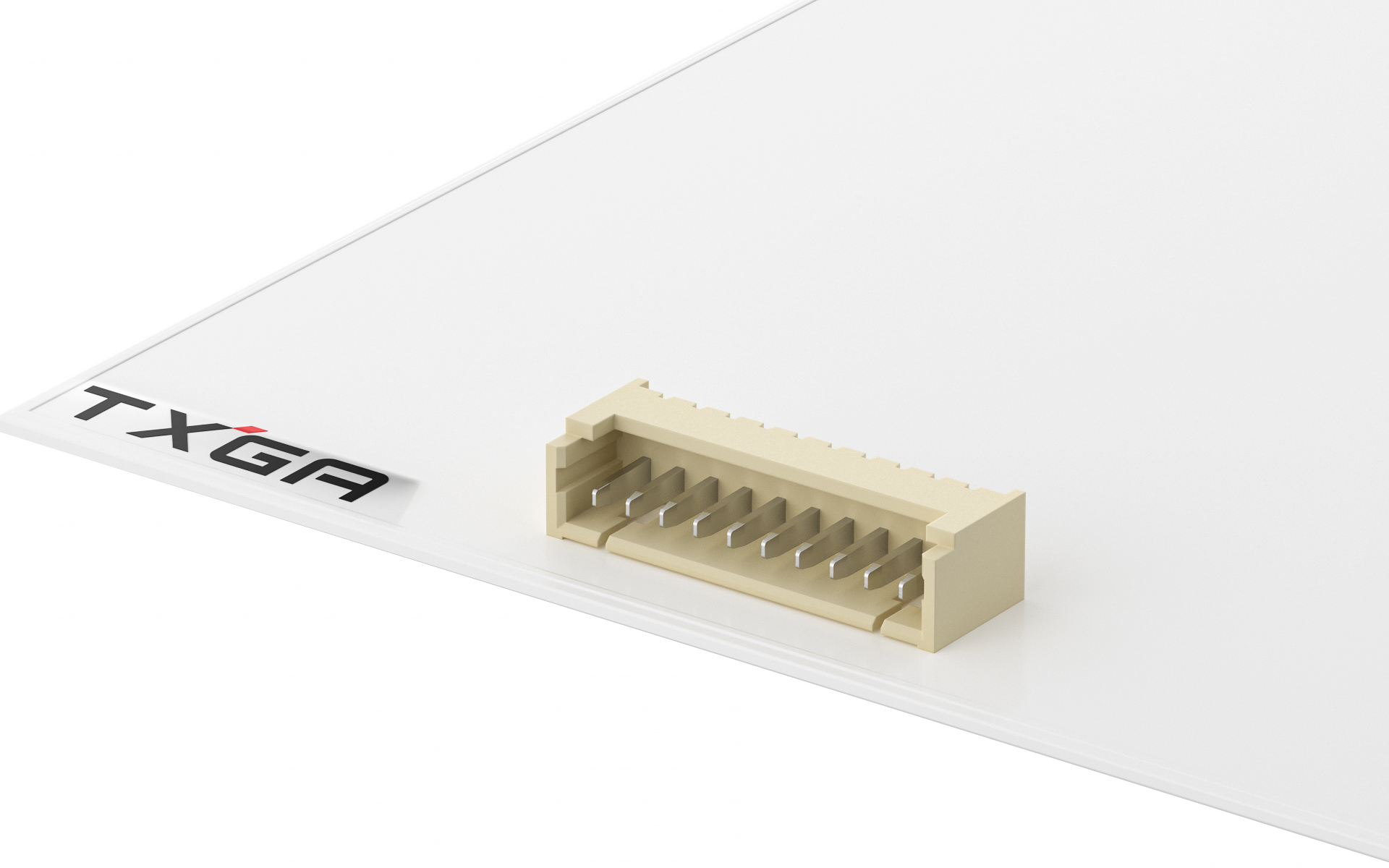

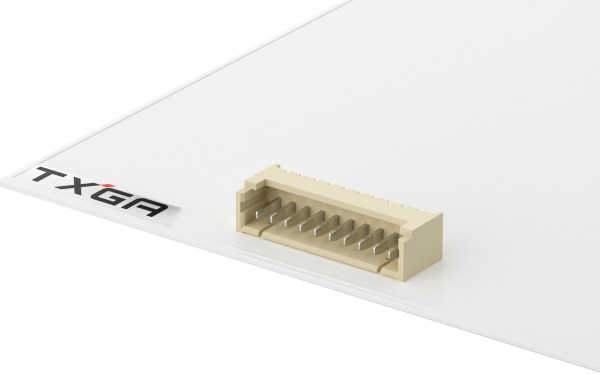

FWF12507-S10B24W5B
Wafer 1.25mm 90°Angle 10Circuits (DIP)
FWF12507-S10B24W5B Copy
Share this product
Stock(pcs)
18
Lead time

≦ 18 In stock

＞ 18 Estimated delivery date 2025-06-05

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.085229
10 $0.079669
50 $0.068549
100 $0.062989
500 $0.051869
1000 $0.033817
2500 $0.033336
5000 $0.032855
10000 $0.032373
25000 $0.031892
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1.25mm
Row Option
Single row
Number of Positions
10Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
125V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Phosphor bronze
Plating
Bright tin plated
Material-Resin
PA46
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF12507 series

Product Specifications

FWF12507Productspecification.pdf
Plug
Wire to board housing 1.25mm 10Circuits

FHG12502-S10M2W1B

Wire to board housing 1.25mm 10Circuits
