板装插座 1.25mm 插件 90° 11位 (46)

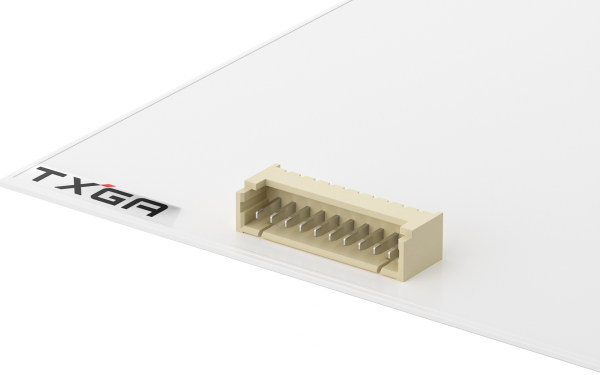

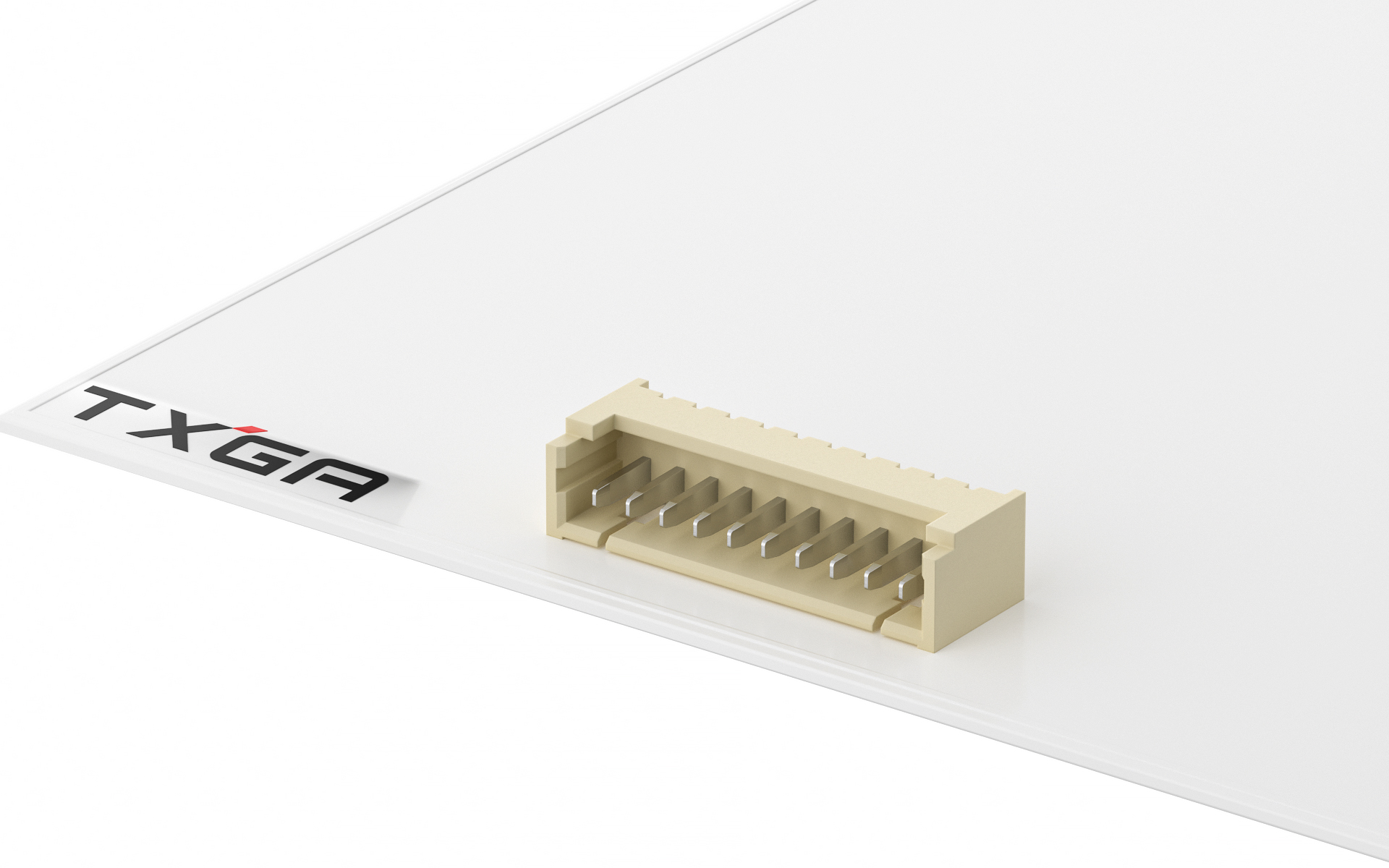

FWF12507-S11B24W5B
Wafer 1.25mm 90°Angle 11Circuits (DIP)
FWF12507-S11B24W5B Copy
Share this product
Stock(pcs)
20
Lead time

≦ 20 In stock

＞ 20 Estimated delivery date 2025-12-29

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.269178
10 $0.121683
50 $0.101403
100 $0.088497
500 $0.081122
1000 $0.050148
5000 $0.049411
10000 $0.048673

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1.25mm
Row Option
Single row
Number of Positions
11Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
125V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Phosphor bronze
Plating
Bright tin plated
Material-Resin
PA46
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF12507 series

3D Drawings

FWF12507-S11B24W5B_REF

Product Specifications

FWF12507Productspecification.pdf
Plug
Wire to board housing 1.25mm 11Circuits

FHG12502-S11M2W1B

Wire to board housing 1.25mm 11Circuits
