FWF12510-S02B14W5M-A Wafer 1.25mm 90°Angle 2Circuits (SMT) H=2.1mm

FWF12510-S02B14W5M-A

Wafer 1.25mm 90°Angle 2Circuits (SMT) H=2.1mm

Product Number：FWF12510-S02B14W5M-A

Production Status： Active

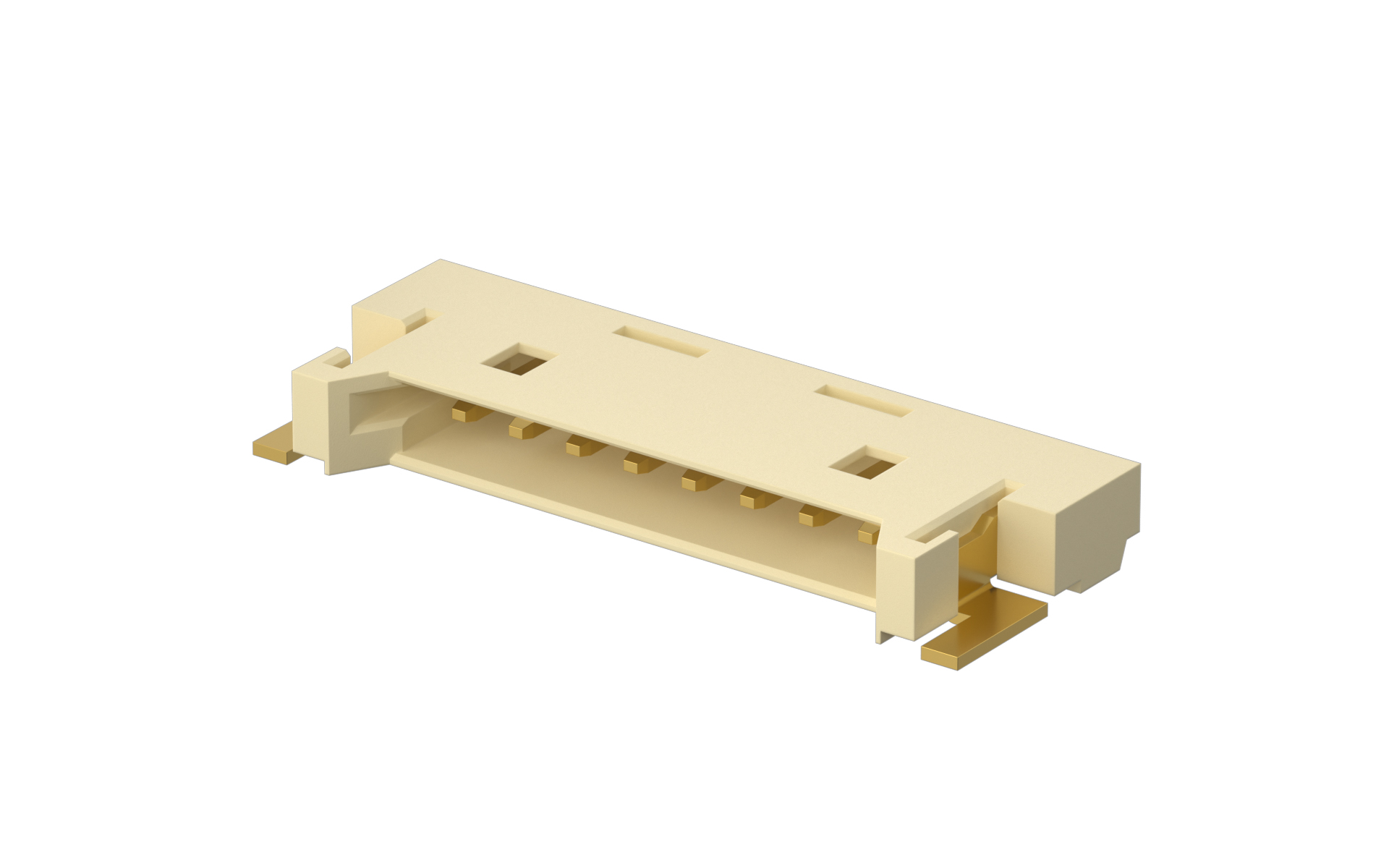

Wafer 1.25mm 90°Angle 2Circuits (SMT) H=2.1mm

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{1.604436\|tradeCurrencySymbol({digits:6})}}
50+	{{1.069624\|tradeCurrencySymbol({digits:6})}}
100+	{{0.89772\|tradeCurrencySymbol({digits:6})}}
500+	{{0.744917\|tradeCurrencySymbol({digits:6})}}
2000+	{{0.517622\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 52

Lead time Ship Immediately

MOQ 2000

MPQ 20000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Wire to Board/Wire Connector

Style

Socket

Gender

Female

Pitch

1.25mm

Row Option

Single row

Number of Positions

2Circuits

Orientation

Right angle(90°)

Colour

Natural

Current(Max)

Voltage(Max)

125V

Contact Resistance

20 mΩ Max

Insulation Resistance

500 MΩ Min

Withstanding Voltage

250V AC r.m.s

Operating Temperature Range

-40ºC~+85ºC

Mounting Style

SMT

Material-Contact

Copper alloy

Plating

Gold plated

Material-Resin

PA9T

Flammability Rating

UL94 V-0

Packaging

Reel

Product Drawings

FWF12510 Series.pdf

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
