FWF12511-D40S14W5M Wafer 1.25mm 180°Vertical 40Circuits (SMT)

FWF12511-D40S14W5M

Wafer 1.25mm 180°Vertical 40Circuits (SMT)

Product Number：FWF12511-D40S14W5M

Production Status： Active

Wafer 1.25mm 180°Vertical 40Circuits (SMT)

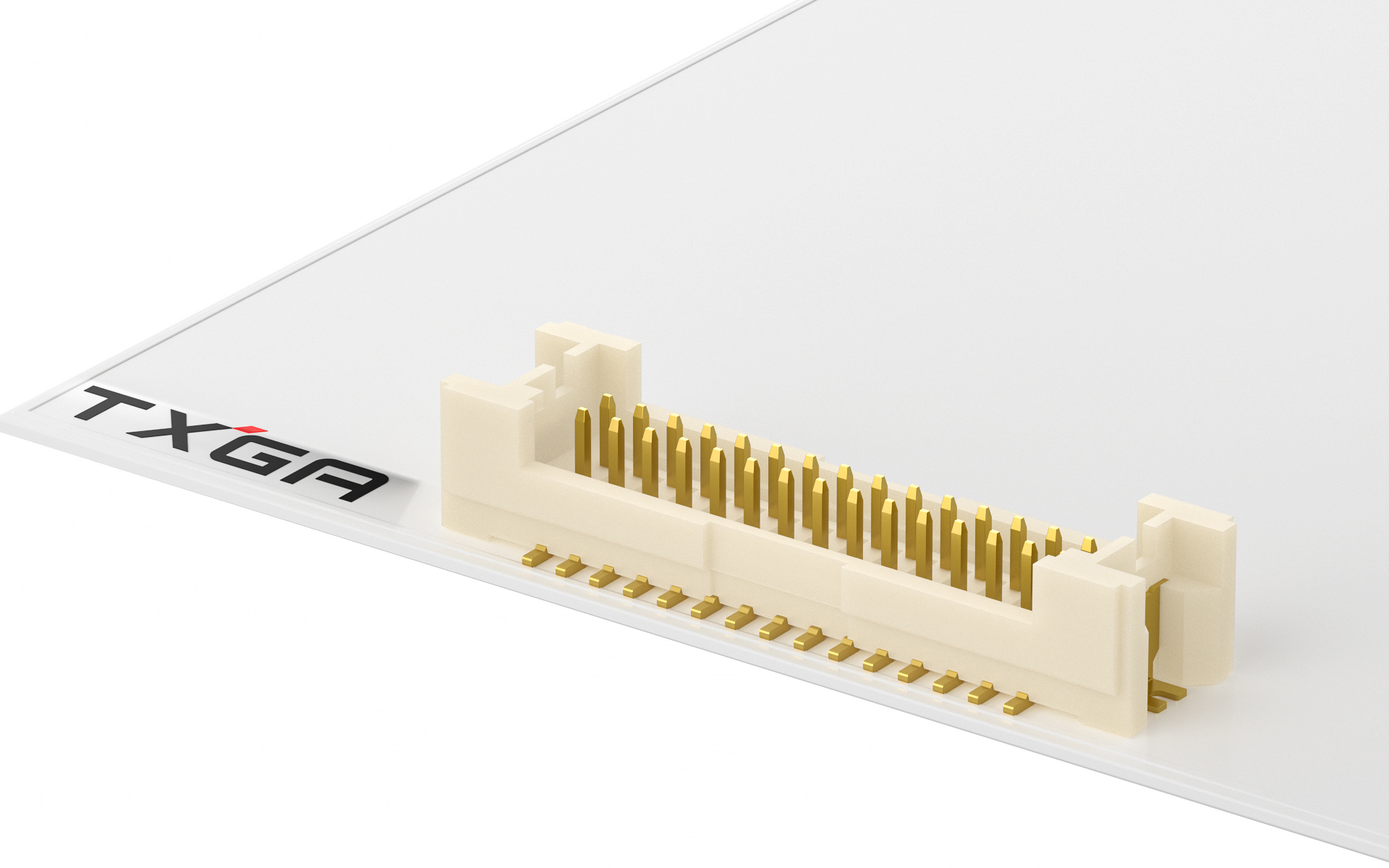

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{4.64621\|tradeCurrencySymbol({digits:6})}}
10+	{{4.388372\|tradeCurrencySymbol({digits:6})}}
50+	{{3.872695\|tradeCurrencySymbol({digits:6})}}
100+	{{3.614858\|tradeCurrencySymbol({digits:6})}}
500+	{{3.099181\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 691

Lead time Ship Immediately

MOQ 1000

MPQ 5000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Wire to Board/Wire Connector

Style

Socket

Gender

Female

Pitch

1.25mm

Row Option

Dual row

Number of Positions

40Circuits

Orientation

Vertical(180°)

Colour

Natural

Current(Max)

Voltage(Max)

125V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

Mounting Style

SMT

Material-Contact

Brass

Plating

Gold plated

Material-Resin

PA9T

Flammability Rating

UL94 V-0

Packaging

Reel

Product Drawings

FWF12511 Series.pdf

3D Drawings

FWF12511-D40_ref.stp

Product Specifications

FWF12511Productspecification.pdf English Version

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
