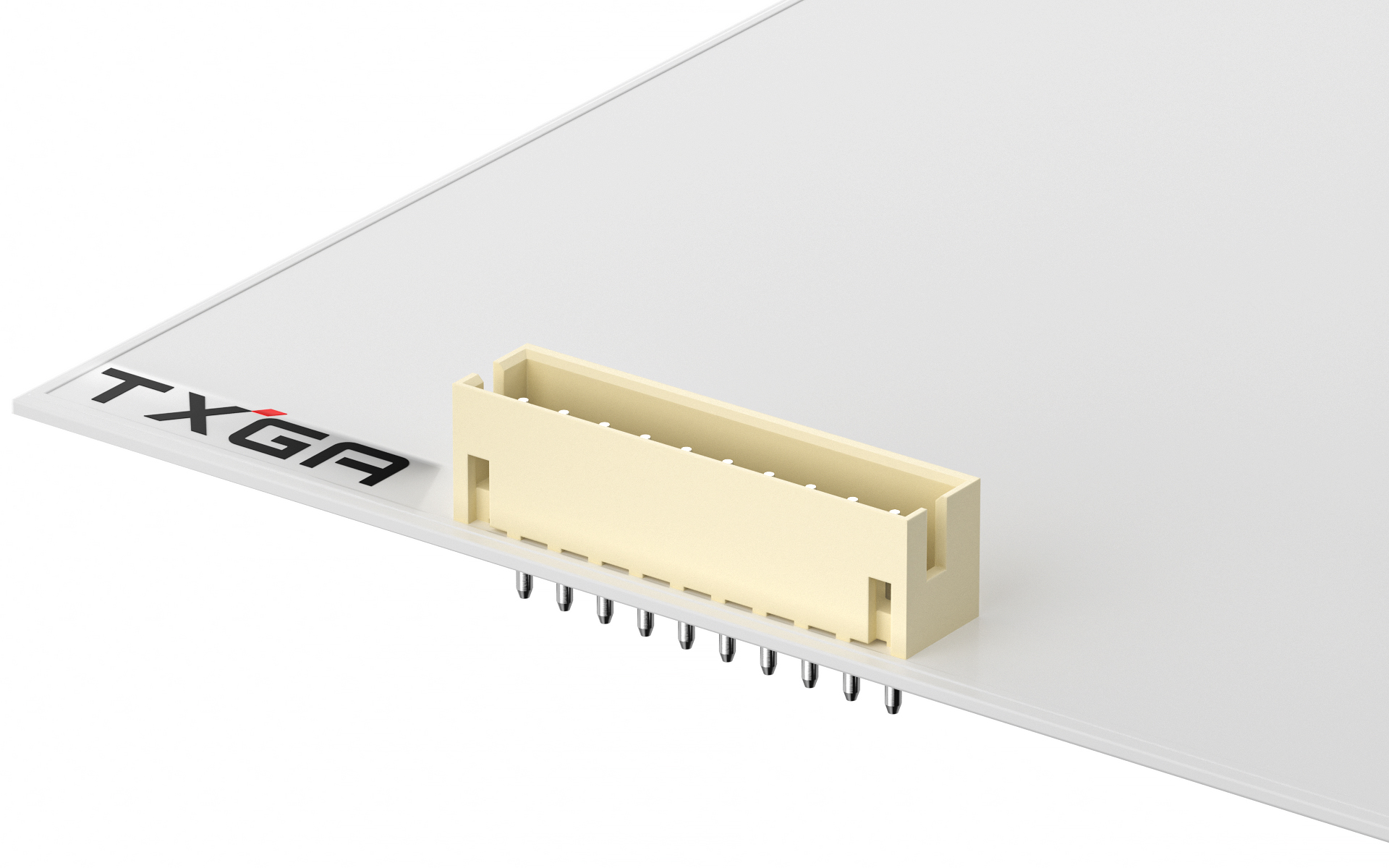

板装插座 1.5mm 插件 180° 9位 (46)
FWF15001-S09S26W5B
Wafer 1.5mm 180°Vertical 9Circuits (DIP)
FWF15001-S09S26W5B Copy
Share this product
Stock(pcs)
508
Lead time

≦ 508 In stock

＞ 508 Estimated delivery date 2025-08-15

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.078045
10 $0.063997
50 $0.048388
100 $0.046827
500 $0.037462
1000 $0.022945
5000 $0.022321
10000 $0.022009
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1.5mm
Row Option
Single row
Number of Positions
9Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA46
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF15001 Series

Product Specifications

FWF15001Productspecification.pdf
Plug
Wire to board housing 1.50mm 9Circuits

FHG15001-S09M2W1B

Wire to board housing 1.50mm 9Circuits
