板装插座 1.5mm 插件 90° 8位 (46)
FWF15003-S08B26W5B

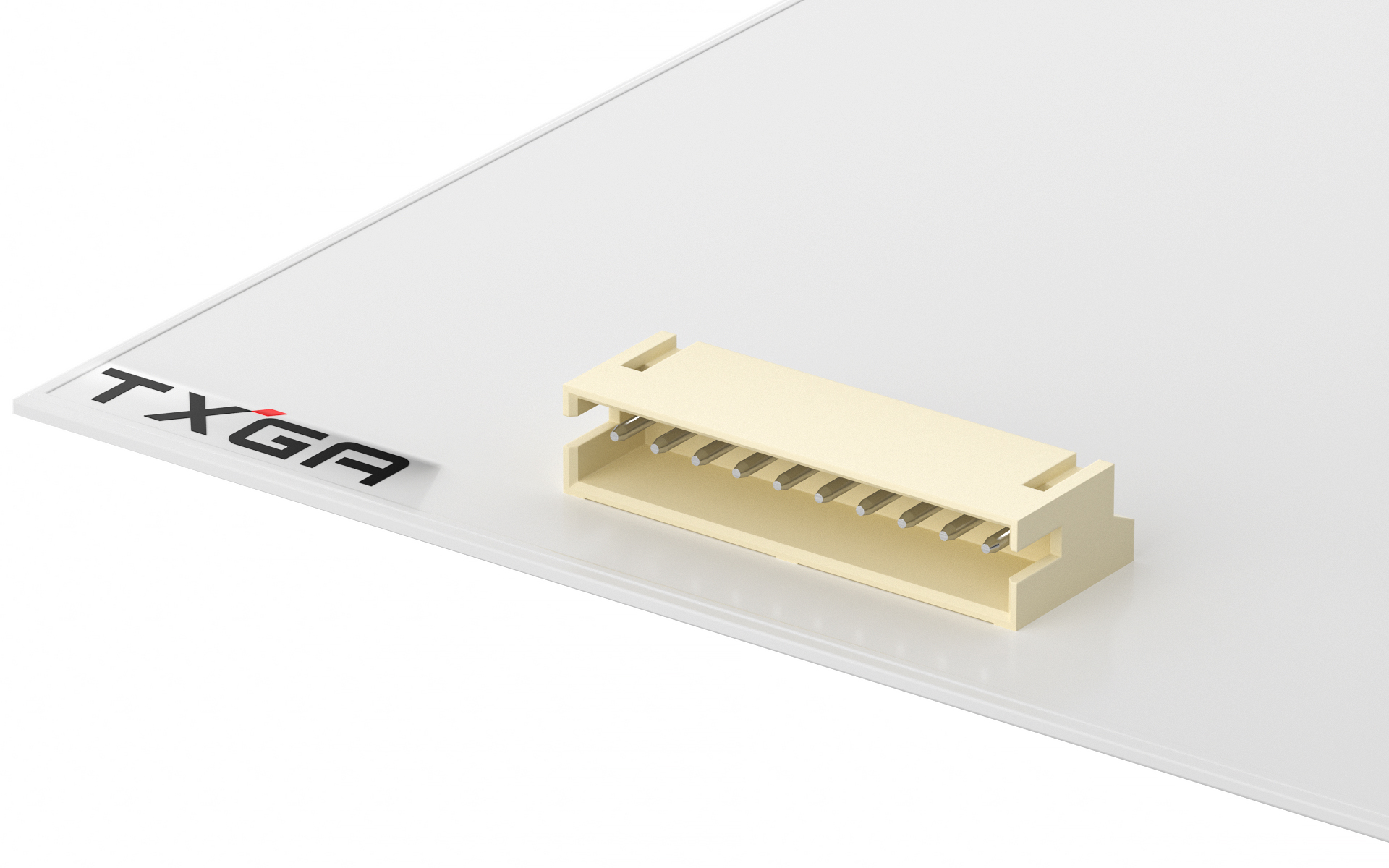

Wafer 1.5mm 90°Angle 8Circuits (DIP)
FWF15003-S08B26W5B Copy
Share this product
Stock(pcs)
753
Lead time

≦ 753 In stock

＞ 753 Estimated delivery date 2025-08-15

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.076340
10 $0.062599
50 $0.047331
100 $0.045804
500 $0.036643
1000 $0.022444
5000 $0.021833
10000 $0.021528
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1.5mm
Row Option
Single row
Number of Positions
8Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA46
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF15003 Series

Product Specifications

FWF15003Productspecification.pdf
Plug
Wire to board housing 1.50mm 8Circuits

FHG15001-S08M2W1B

Wire to board housing 1.50mm 8Circuits
