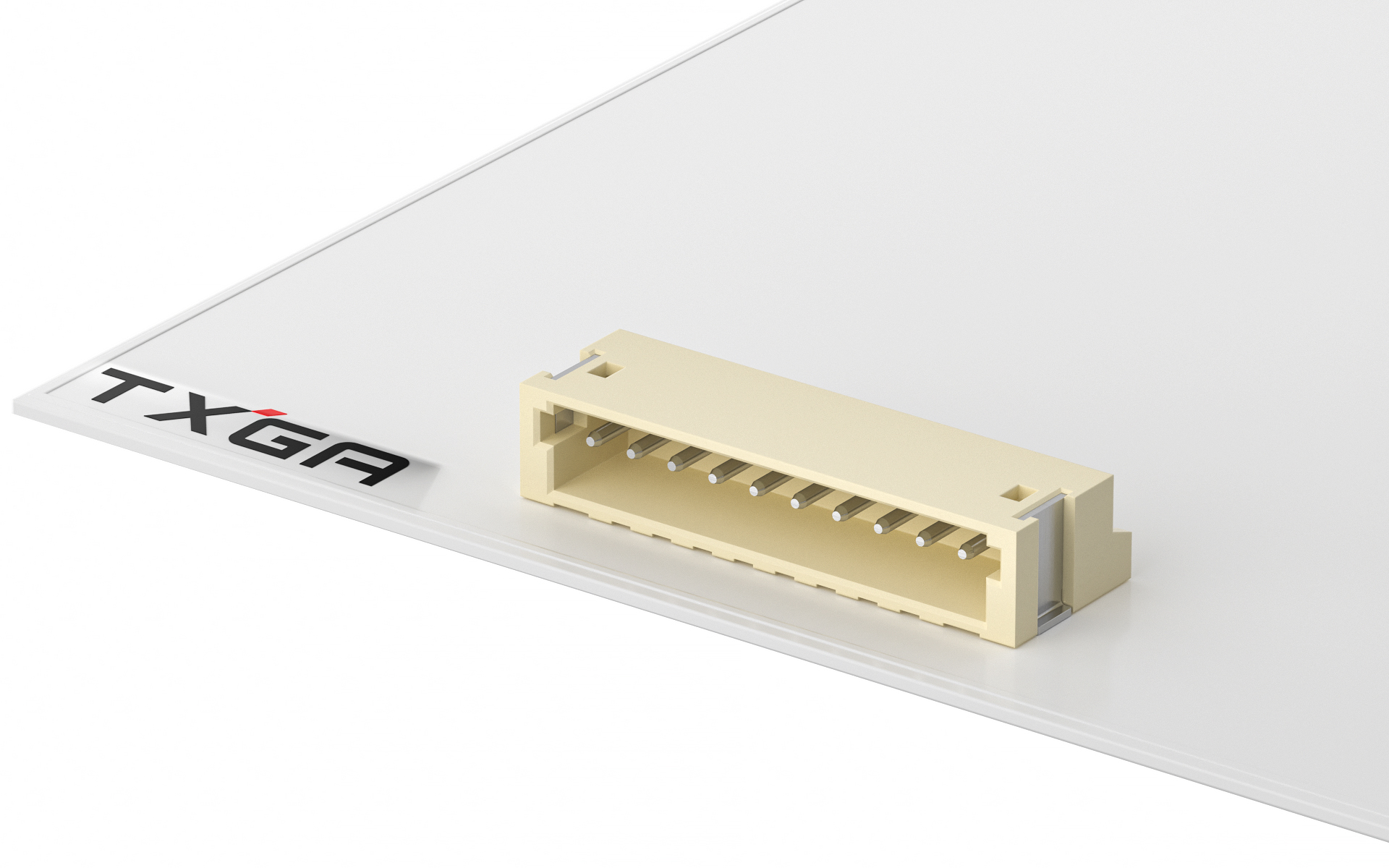

板装插座 1.5mm 卧贴 8位 (9T)
FWF15004-S08B24W5M
Wafer 1.5mm 90°Angle 8Circuits (SMT)
FWF15004-S08B24W5M Copy
Share this product
Stock(pcs)
928
Lead time

≦ 928 In stock

＞ 928 Estimated delivery date 2025-08-15

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.210197
10 $0.164216
50 $0.142868
100 $0.131373
500 $0.108383
1000 $0.073240
5000 $0.071270
10000 $0.070613
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1.5mm
Row Option
Single row
Number of Positions
8Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF15004 series

Product Specifications

FWF15004Productspecification.pdf
Plug
Wire to board housing 1.50mm 8Circuits

FHG15001-S08M2W1B

Wire to board housing 1.50mm 8Circuits
