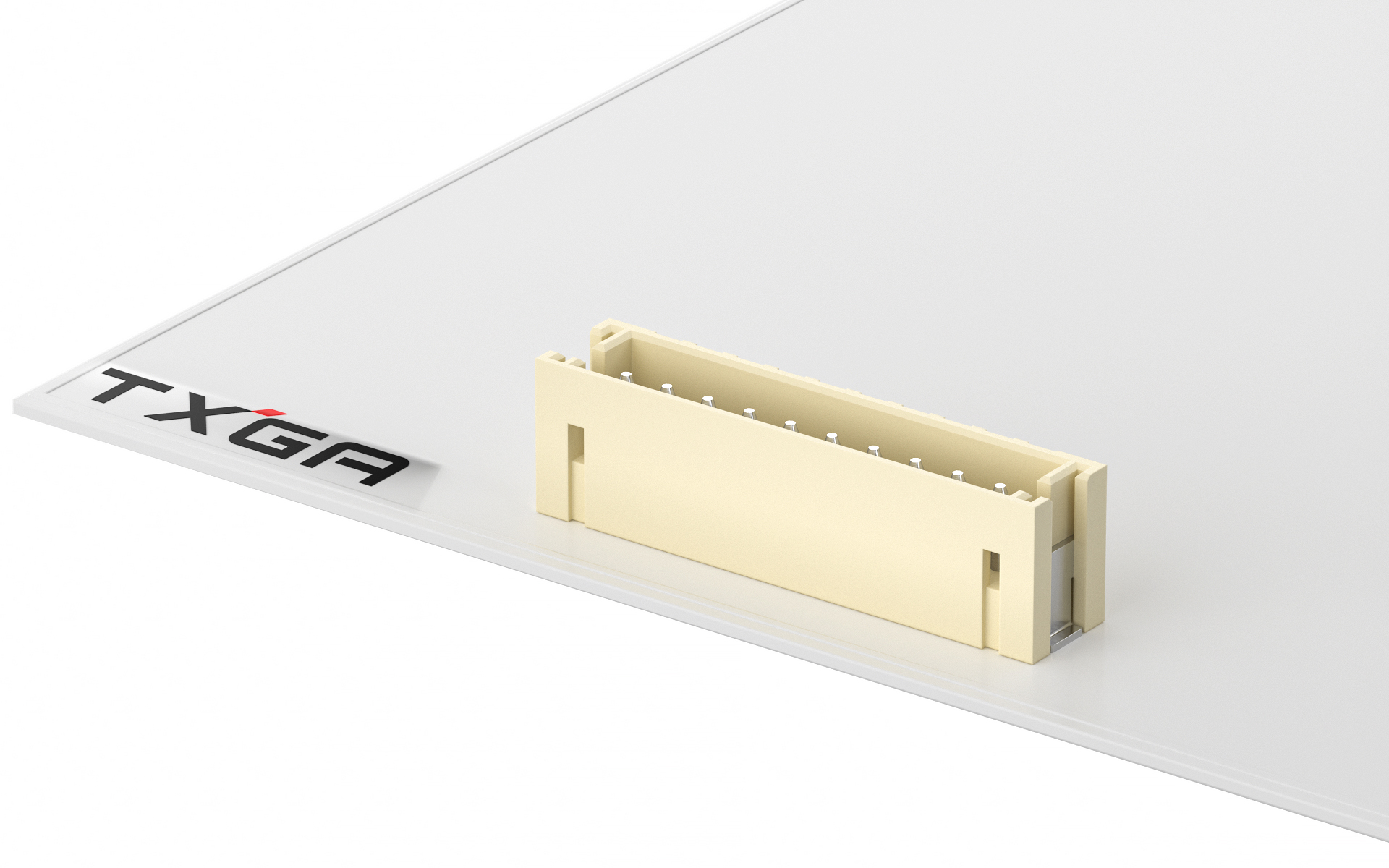

板装插座 1.5mm 立贴 14位 (9T)
FWF15005-S14S24W5M
Wafer 1.5mm 180°Vertical 14Circuits (SMT)
FWF15005-S14S24W5M Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-08-18
MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.310736
10 $0.249311
50 $0.213179
100 $0.202340
500 $0.166208
1000 $0.119959
5000 $0.117068
10000 $0.115623
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1.5mm
Row Option
Single row
Number of Positions
14Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF15005 series

3D Drawings

FWF15005-S14S24W5M-REF

Product Specifications

FWF15005Productspecification.pdf
Plug
Wire to board housing 1.50mm 14Circuits

FHG15001-S14M2W1B

Wire to board housing 1.50mm 14Circuits
