板装插座 2mm 插件 180° 26位(46)

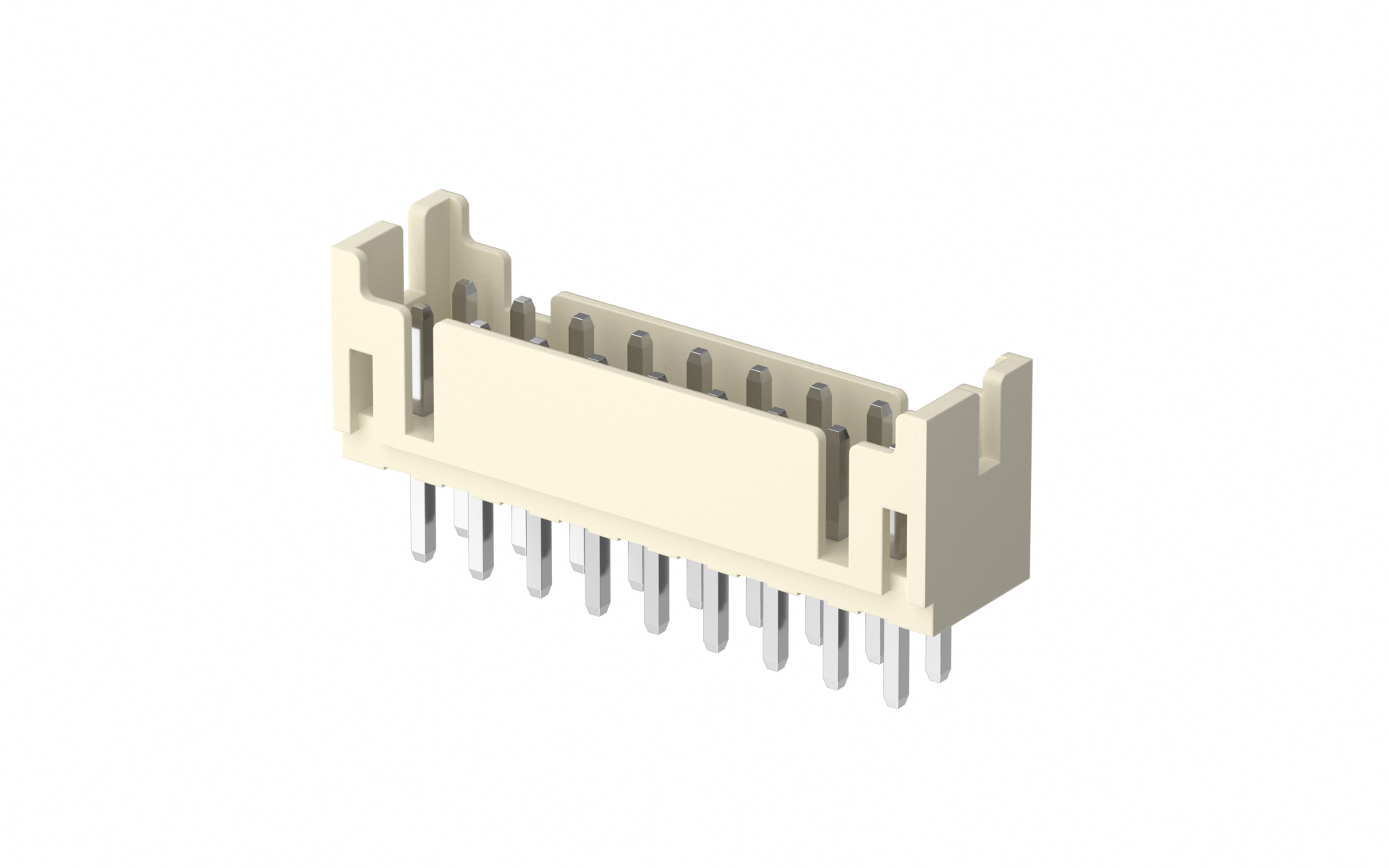

FWF20005-D26S22W5B
Wafer 2mm 180°Vertical, 26Circuits (DIP)
FWF20005-D26S22W5B Copy
Share this product
Stock(pcs)
15
Lead time

≦ 15 In stock

＞ 15 Estimated delivery date 2025-11-14

MPQ
500
MOQ
1000
Quantity Unit Price
1 $0.139429
10 $0.131157
50 $0.114614
100 $0.106342
500 $0.089799
1000 $0.066721
2500 $0.065807
5000 $0.064893
10000 $0.063979
25000 $0.063065

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2mm
Row Option
Dual row
Number of Positions
26Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA46
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF20005

Product Specifications

FWF20005Productspecification(A1).pdf
