板装插座 2mm 插件 180° 30位(46)

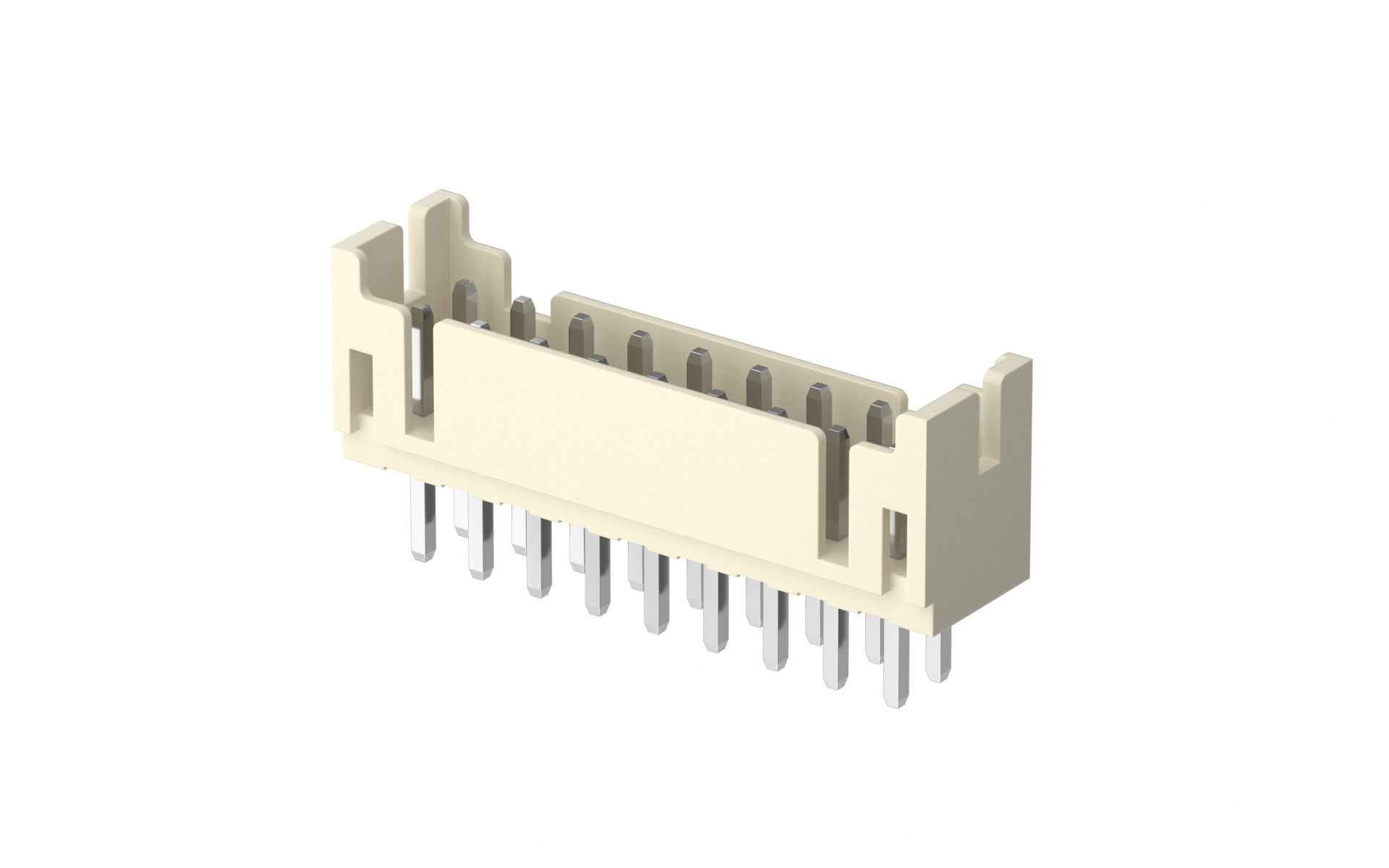

FWF20005-D30S22W5B
Wafer 2mm 180°Vertical, 30Circuits (DIP)
FWF20005-D30S22W5B Copy
Share this product
Stock(pcs)
409
Lead time

≦ 409 In stock

＞ 409 Estimated delivery date 2025-11-14

MPQ
500
MOQ
1000
Quantity Unit Price
1 $0.160486
10 $0.150965
50 $0.131924
100 $0.122403
500 $0.103361
1000 $0.076798
2500 $0.075746
5000 $0.074694
10000 $0.073642
25000 $0.072590

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2mm
Row Option
Dual row
Number of Positions
30Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA46
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF20005

Product Specifications

FWF20005Productspecification(A1).pdf
Plug
Wire to board housing 2mm 30Circuits

FHG20003-D30M2W1B

Wire to board housing 2mm 30Circuits
