板装插座 2mm 插件 90° 20位(46)

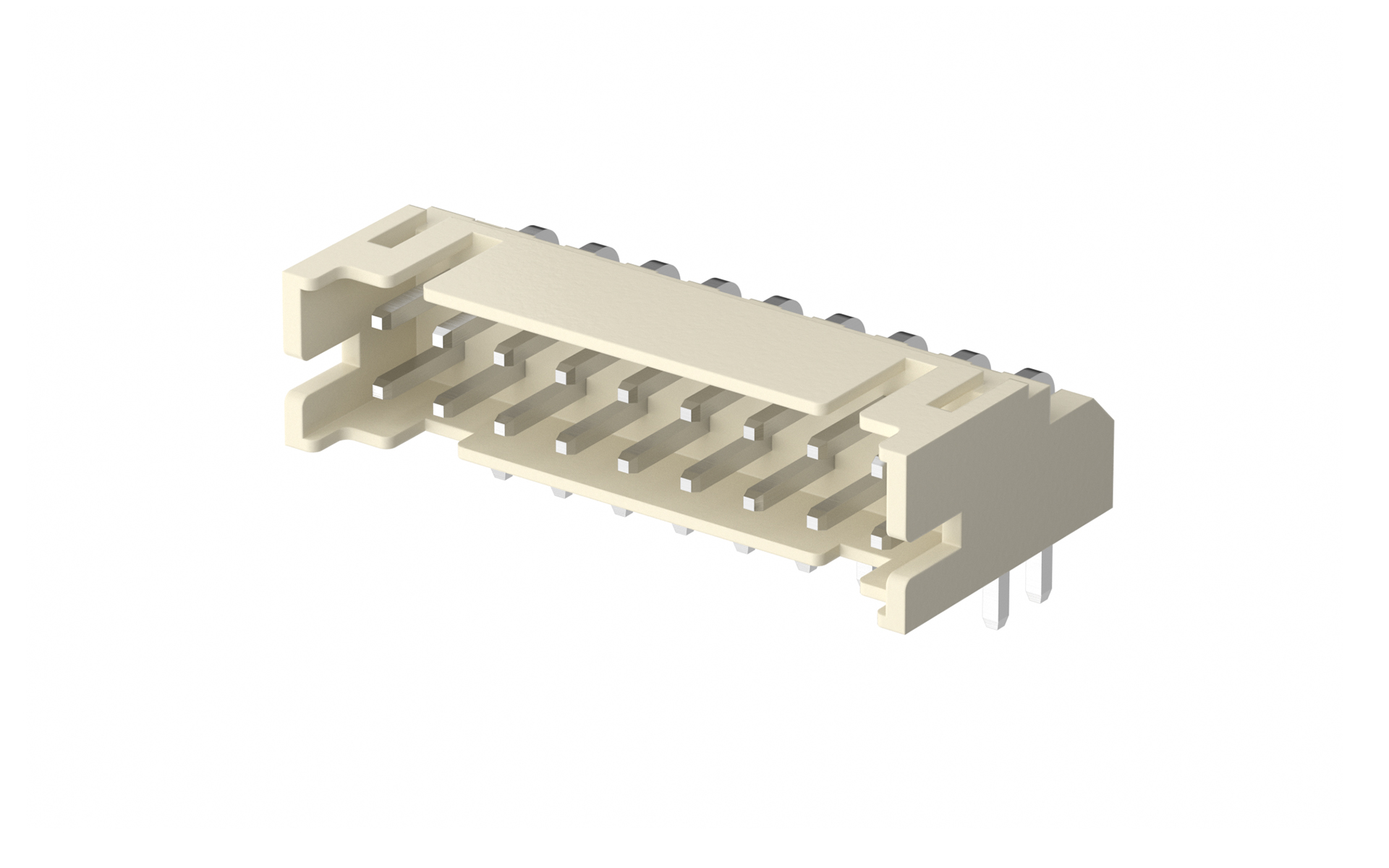

FWF20006-D20B22W5B
Wafer 2mm 90°Angle 20Circuits (DIP)
FWF20006-D20B22W5B Copy
Share this product
Stock(pcs)
855
Lead time

≦ 855 In stock

＞ 855 Estimated delivery date 2025-11-14

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.127664
10 $0.120091
50 $0.104943
100 $0.097370
500 $0.082222
1000 $0.061091
2500 $0.060255
5000 $0.059418
10000 $0.058581
25000 $0.057744

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2mm
Row Option
Dual row
Number of Positions
20Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA46
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

Drawing-FWF20006

3D Drawings

FWF20006-D20B22W5B_REF

Product Specifications

FWF20006Productspecification(A1).pdf
Plug
Wire to board housing 2mm 20Circuits

FHG20003-D20M2W1B

Wire to board housing 2mm 20Circuits
