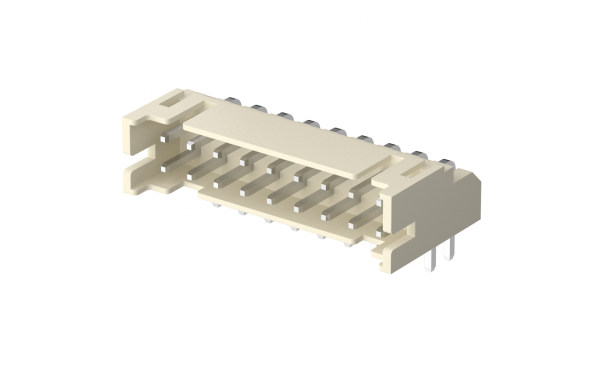

板装插座 2mm 插件 90° 24位(46)
FWF20006-D24B22W5B
Wafer 2mm 90°Angle 24Circuits (DIP)
FWF20006-D24B22W5B Copy
Share this product
Stock(pcs)
445
Lead time

≦ 445 In stock

＞ 445 Estimated delivery date 2025-11-14

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.152887
10 $0.143817
50 $0.125677
100 $0.116607
500 $0.098467
1000 $0.073161
2500 $0.072159
5000 $0.071157
10000 $0.070155
25000 $0.069152

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2mm
Row Option
Dual row
Number of Positions
24Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA46
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

Drawing-FWF20006

3D Drawings

FWF20006-D24B22W5B-REF

Product Specifications

FWF20006Productspecification(A1).pdf
Plug
Wire to board housing 2mm 24Circuits

FHG20003-D24M2W1B

Wire to board housing 2mm 24Circuits
