板装插座 2mm 插件 90° 5位(带锁扣)

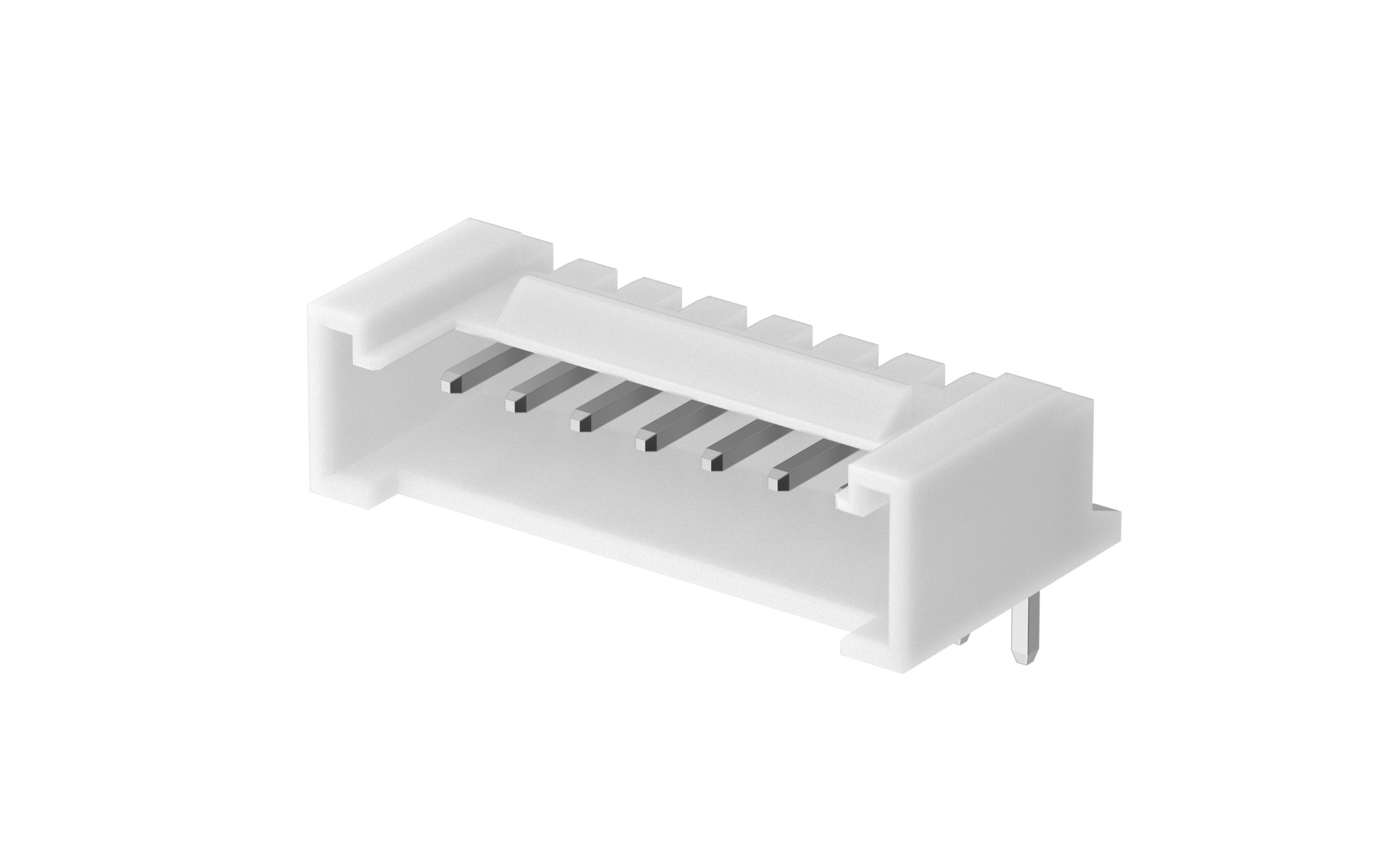

FWF20010-S05B22W1B
Wafer 2mm 90°Angle 5Circuits (DIP)
FWF20010-S05B22W1B Copy
Share this product
Stock(pcs)
629
Lead time

≦ 629 In stock

＞ 629 Estimated delivery date 2025-12-30

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.052025
10 $0.048503
50 $0.041459
100 $0.037938
500 $0.030894
1000 $0.018424
2500 $0.018173
5000 $0.017922
10000 $0.017672
25000 $0.017421

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2mm
Row Option
Single row
Number of Positions
5Circuits
Orientation
Right angle(90°)
Colour
White
Electrical
Current(Max)
2A
Voltage(Max)
125V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

Drawing-FWF20010

3D Drawings

FWF20010-5P_ref

Product Specifications

FWF20010Productspecification.pdf
Plug
Wire to board housing 2mm 5Circuits

FHG20005-S05M2W1B

Wire to board housing 2mm 5Circuits
