板装插座 2mm 插件 90° 7位(带锁扣)

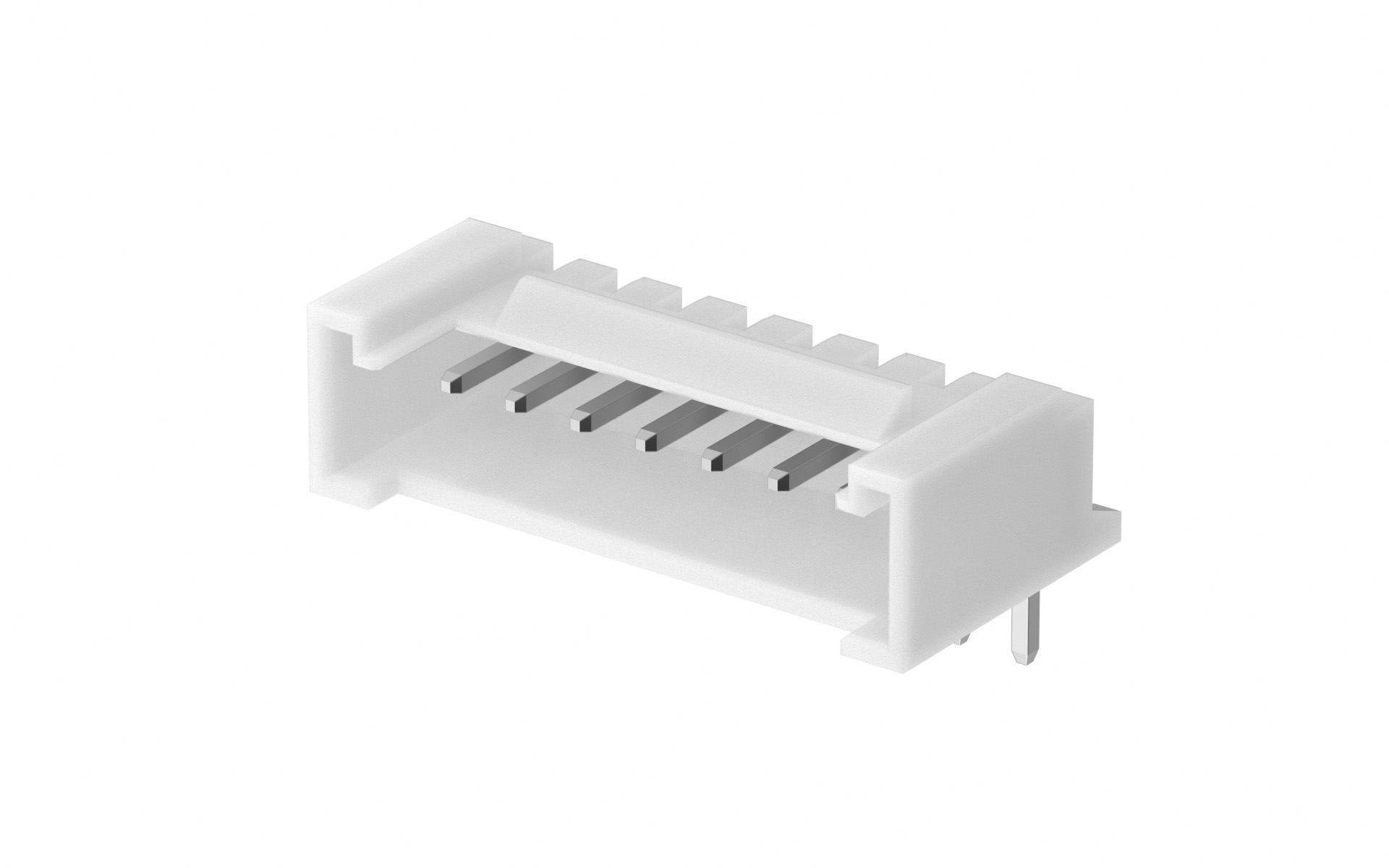

FWF20010-S07B22W1B
Wafer 2mm 90°Angle 7Circuits (DIP)
FWF20010-S07B22W1B Copy
Share this product
Stock(pcs)
420
Lead time

≦ 420 In stock

＞ 420 Estimated delivery date 2025-12-29

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.073486
10 $0.068511
50 $0.058562
100 $0.053587
500 $0.043638
1000 $0.026024
2500 $0.025669
5000 $0.025315
10000 $0.024961
25000 $0.024607

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2mm
Row Option
Single row
Number of Positions
7Circuits
Orientation
Right angle(90°)
Colour
White
Electrical
Current(Max)
2A
Voltage(Max)
125V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

Drawing-FWF20010

Product Specifications

FWF20010Productspecification.pdf
Plug
Wire to board housing 2mm 7Circuits

FHG20005-S07M2W1B

Wire to board housing 2mm 7Circuits
