板装插座 2mm 插件 90° 12位(带锁扣)
FWF20010-S12B22W1B

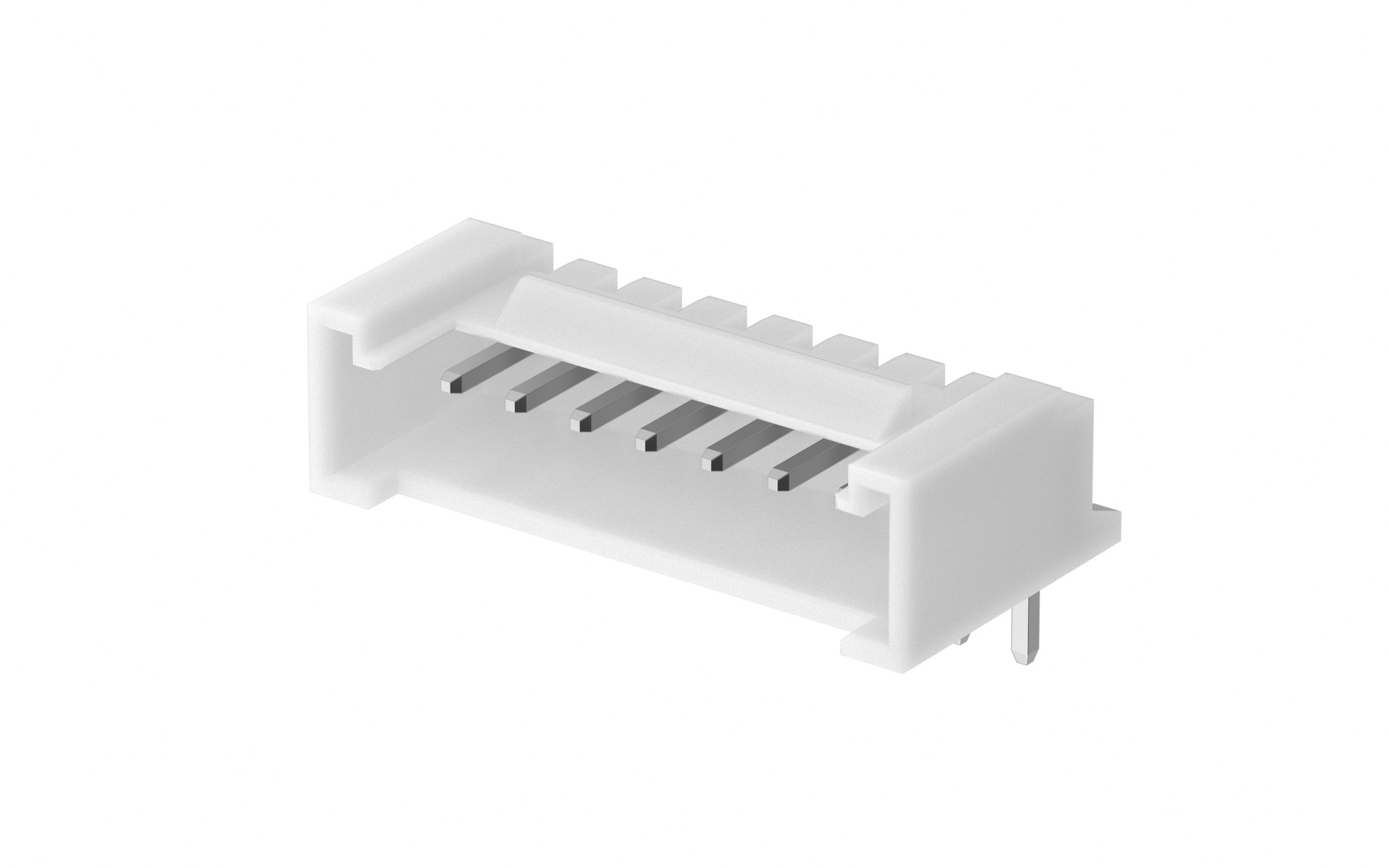

Wafer 2mm 90°Angle 12Circuits (DIP)
FWF20010-S12B22W1B Copy
Share this product
Stock(pcs)
808
Lead time

≦ 808 In stock

＞ 808 Estimated delivery date 2025-12-30

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.105855
10 $0.099064
50 $0.085484
100 $0.078693
500 $0.065112
1000 $0.043065
2500 $0.042477
5000 $0.041889
10000 $0.041301
25000 $0.040713

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2mm
Row Option
Single row
Number of Positions
12Circuits
Orientation
Right angle(90°)
Colour
White
Electrical
Current(Max)
2A
Voltage(Max)
125V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

Drawing-FWF20010

Product Specifications

FWF20010Productspecification.pdf
Plug
Wire to board housing 2mm 12Circuits

FHG20005-S12M2W1B

Wire to board housing 2mm 12Circuits
