FWF20012-D16S22W5B Wafer 2mm 180°Vertical 16Circuits (DIP)

FWF20012-D16S22W5B

Wafer 2mm 180°Vertical 16Circuits (DIP)

Product Number：FWF20012-D16S22W5B

Production Status： Active

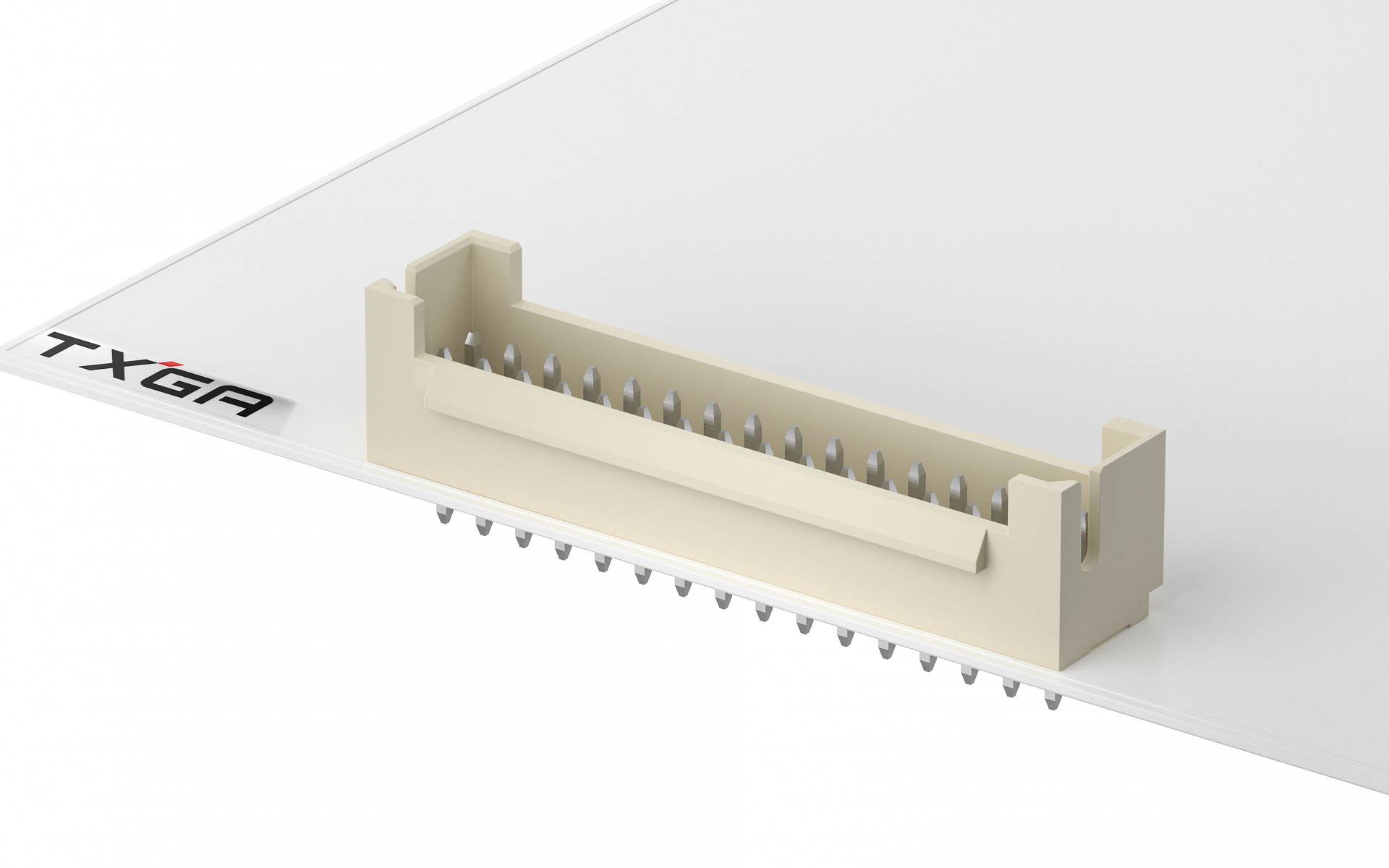

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{1.474917\|tradeCurrencySymbol({digits:6})}}
50+	{{0.983278\|tradeCurrencySymbol({digits:6})}}
100+	{{0.825251\|tradeCurrencySymbol({digits:6})}}
500+	{{0.684783\|tradeCurrencySymbol({digits:6})}}
1000+	{{0.475836\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 1980

Lead time Ship Immediately

MOQ 1000

MPQ 10000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Wire to Board/Wire Connector

Style

Socket

Gender

Female

Pitch

2mm

Row Option

Dual row

Number of Positions

16Circuits

Orientation

Vertical(180°)

Colour

Natural

Current(Max)

Voltage(Max)

250V

Contact Resistance

30 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

1000V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

Mounting Style

Through hole

Material-Contact

Brass

Plating

Bright tin plated

Material-Resin

PA46

Flammability Rating

UL94 V-0

Packaging

PE Bag

Product Drawings

FWF20012 Series.pdf

3D Drawings

FWF20012-D16S22W5B-REF.STEP

Product Specifications

FWF20012Productspecification.pdf English Version

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
