板装插座 2mm 插件180° 20位(带锁扣)

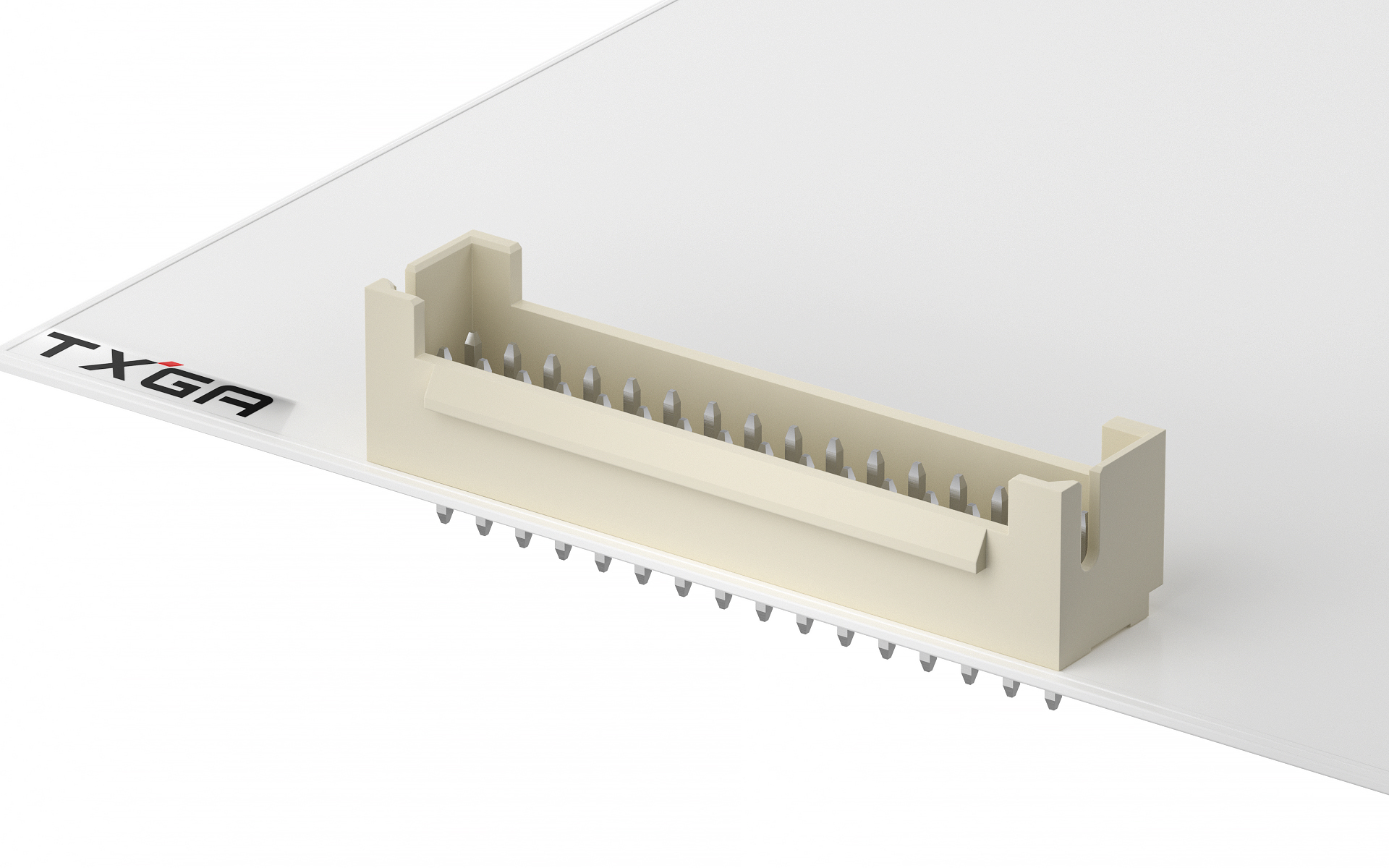

FWF20012-D20S22W5B
Wafer 2mm 180°Vertical 20Circuits (DIP)
FWF20012-D20S22W5B Copy
Share this product
Stock(pcs)
863
Lead time

≦ 863 In stock

＞ 863 Estimated delivery date 2025-12-30

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.171652
10 $0.161469
50 $0.141102
100 $0.130919
500 $0.110553
1000 $0.082141
2500 $0.081016
5000 $0.079890
10000 $0.078765
25000 $0.077640

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2mm
Row Option
Dual row
Number of Positions
20Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
30 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA46
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF20012 Series

3D Drawings

FWF20012-D20S22W5B_REF

Product Specifications

FWF20012Productspecification.pdf
Plug
Wire to board housing 2mm 20Circuits

FHG20007-D20M2W1B

Wire to board housing 2mm 20Circuits
