板装插座 2mm 插件180° 24位(带锁扣)

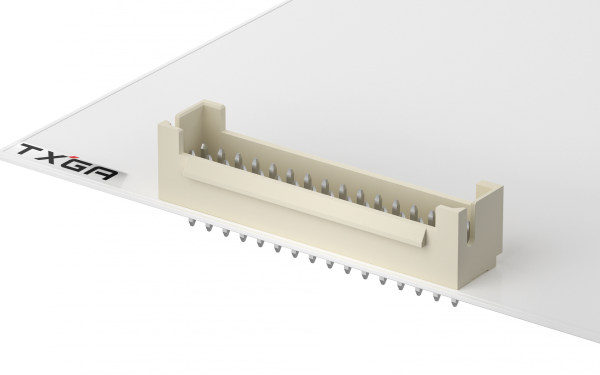

FWF20012-D24S22W5B
Wafer 2mm 180°Vertical 24Circuits (DIP)
FWF20012-D24S22W5B Copy
Share this product
Stock(pcs)
1320
Lead time

≦ 1320 In stock

＞ 1320 Estimated delivery date 2025-12-29

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.205722
10 $0.193517
50 $0.169109
100 $0.156904
500 $0.132495
1000 $0.098444
2500 $0.097096
5000 $0.095747
10000 $0.094399
25000 $0.093050

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2mm
Row Option
Dual row
Number of Positions
24Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
30 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA46
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF20012 Series

3D Drawings

FWF20012-D24S22W5B_REF

Product Specifications

FWF20012Productspecification.pdf
Plug
Wire to board housing 2mm 24Circuits

FHG20007-D24M2W1B

Wire to board housing 2mm 24Circuits
