板装插座 2mm 插件180° 26位(带锁扣)

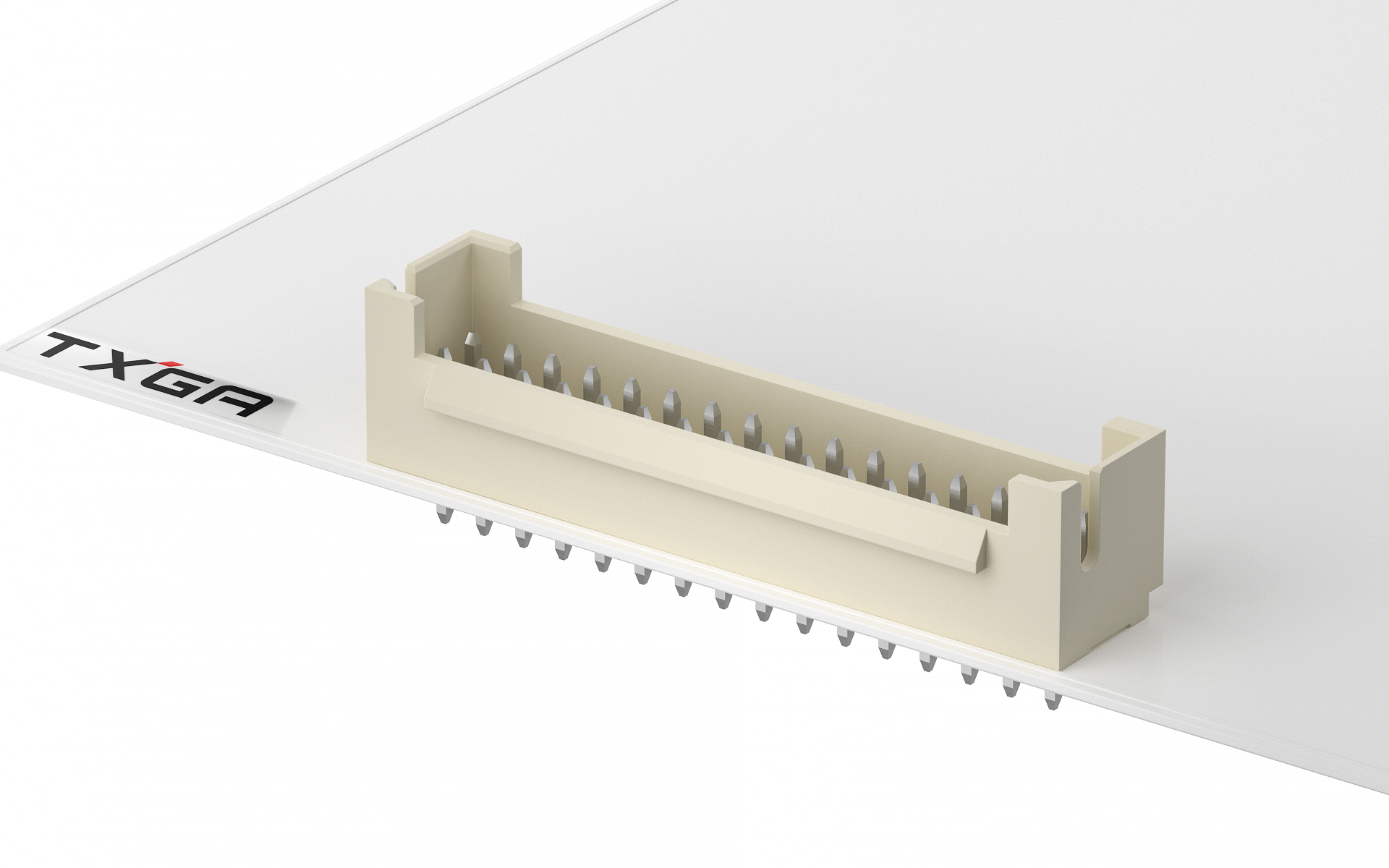

FWF20012-D26S22W5B
Wafer 2mm 180°Vertical 26Circuits (DIP)
FWF20012-D26S22W5B Copy
Share this product
Stock(pcs)
187
Lead time

≦ 187 In stock

＞ 187 Estimated delivery date 2025-12-30

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.211652
10 $0.199095
50 $0.173983
100 $0.161427
500 $0.136315
1000 $0.101282
2500 $0.099895
5000 $0.098507
10000 $0.097120
25000 $0.095732

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2mm
Row Option
Dual row
Number of Positions
26Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
30 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA46
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF20012 Series

3D Drawings

FWF20012-D26S22W5B_REF

Product Specifications

FWF20012Productspecification.pdf
Plug
Wire to board housing 2mm 26Circuits

FHG20007-D26M2W1B

Wire to board housing 2mm 26Circuits
